Intermediate SQL¶

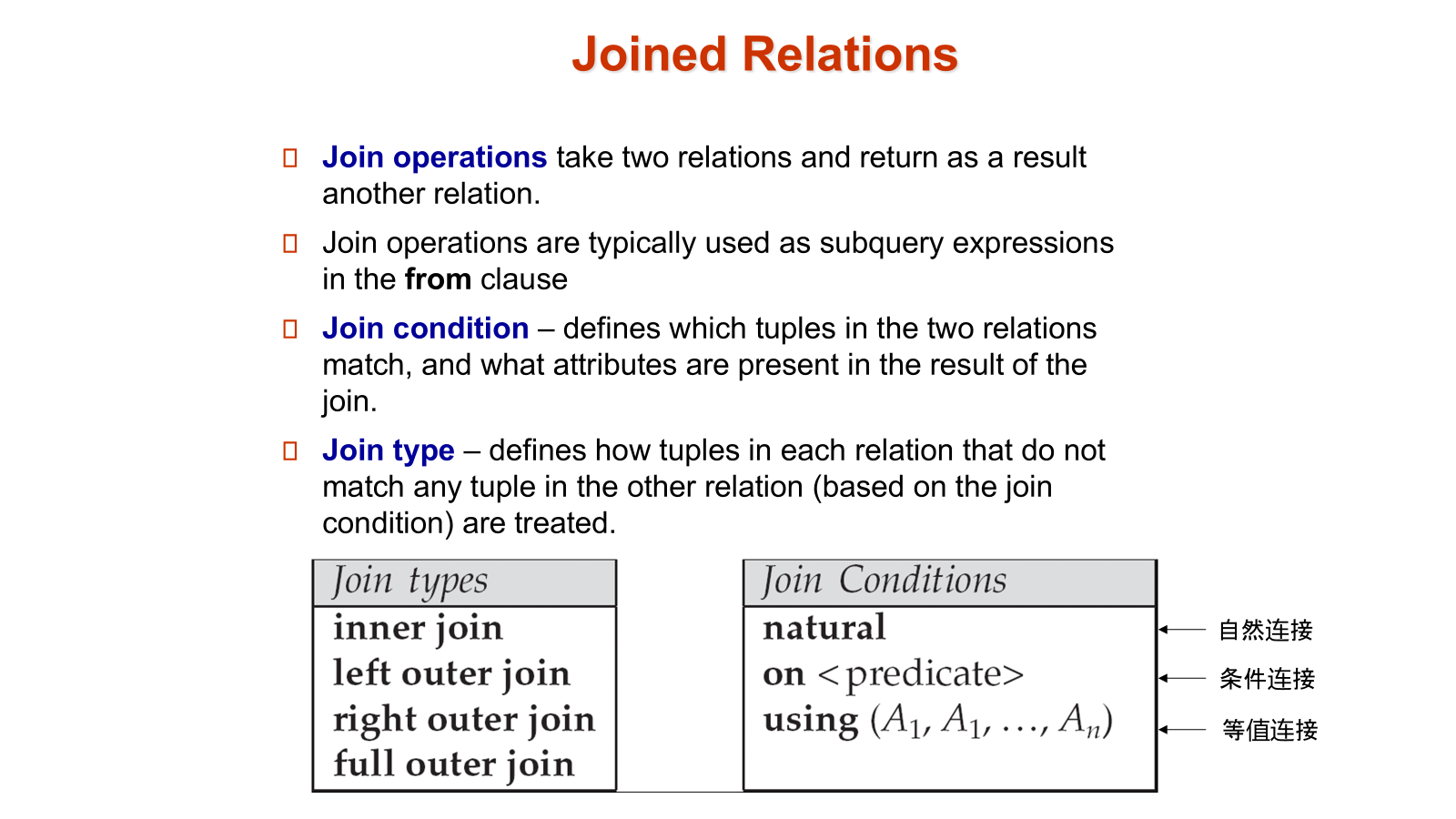

1 Joined Relation¶

alt text

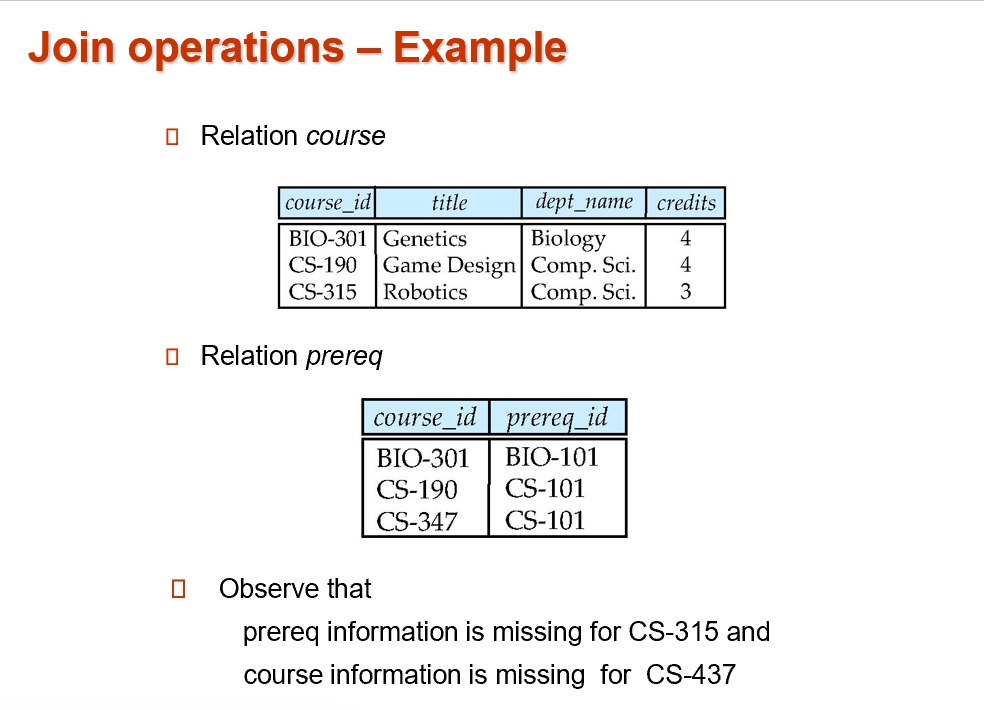

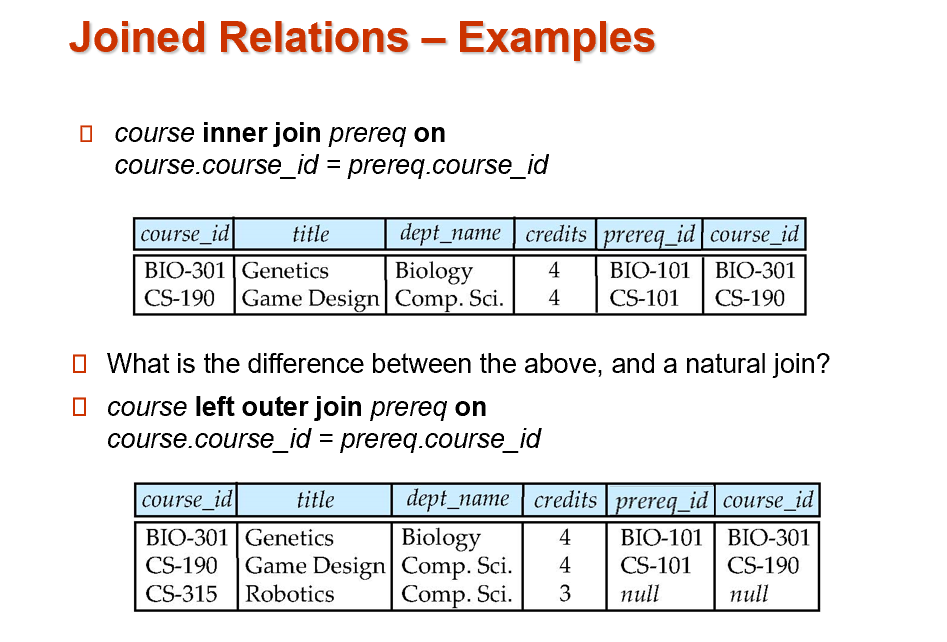

Examples

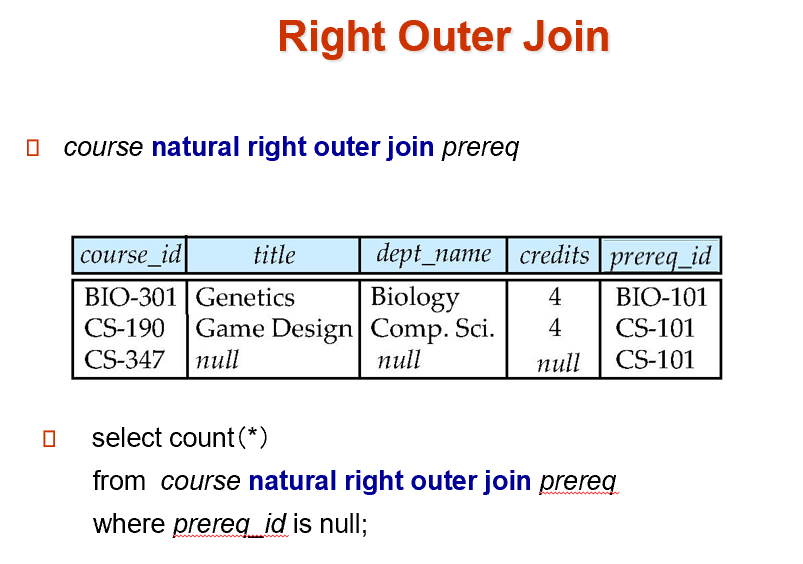

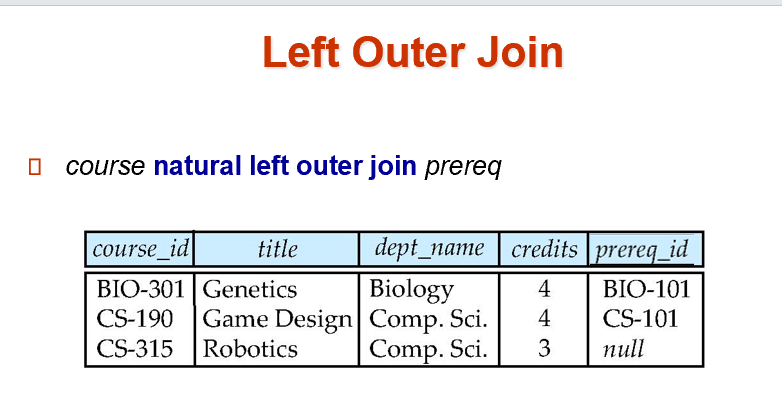

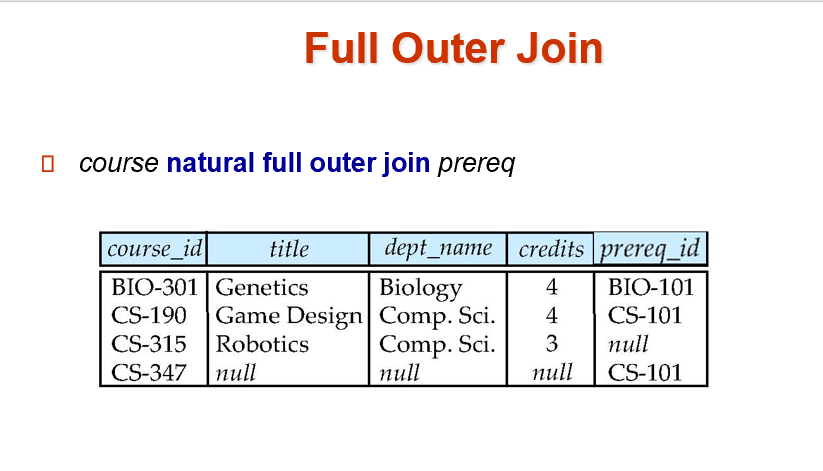

alt text natural join是公用一列相同的值，inner join on 是把相同的值写成两列，left/right outer join和left/right natural outer join不一样，但fully outer join和fully natural join是一样的

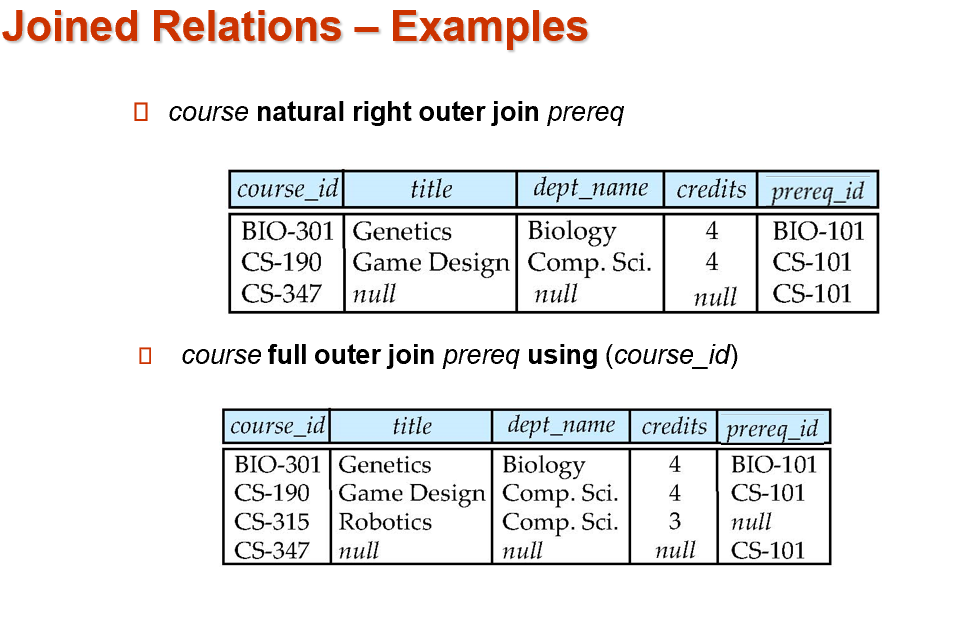

alt text

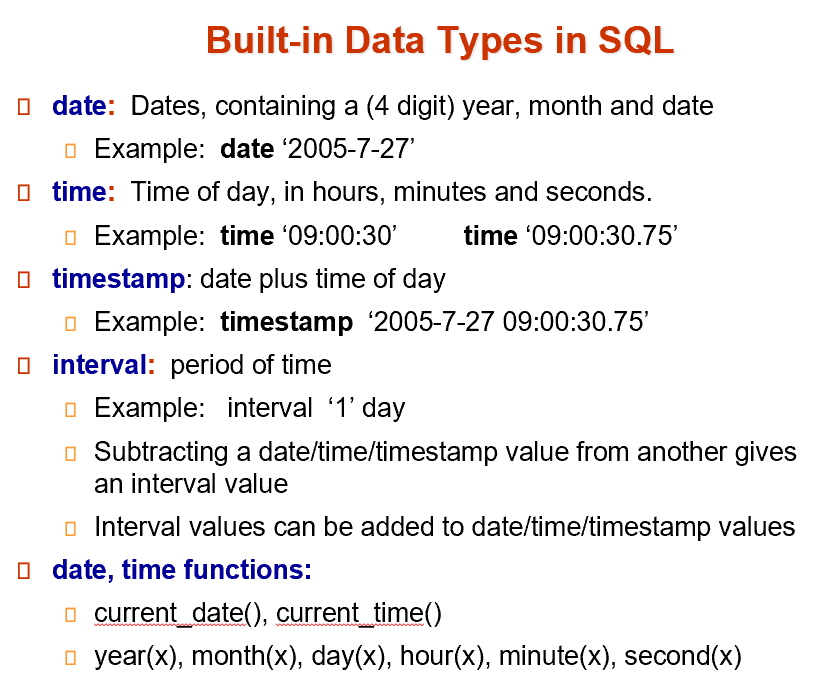

2 SQL Data Types and Schemas¶

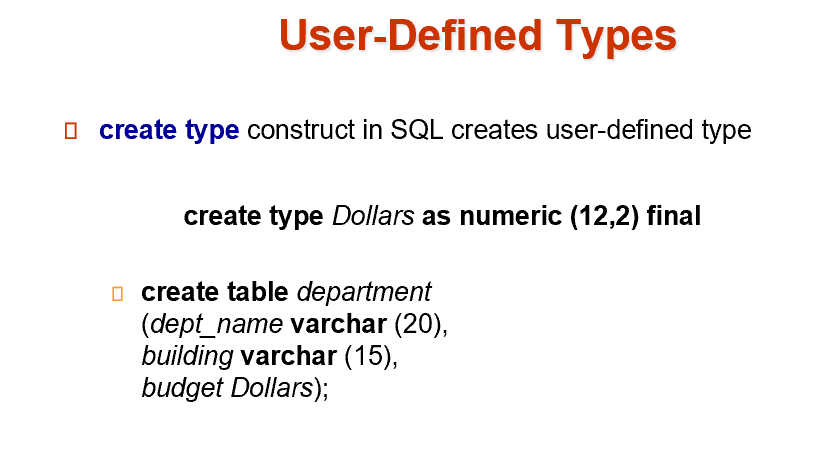

2.1 User-Defined Types¶

alt text

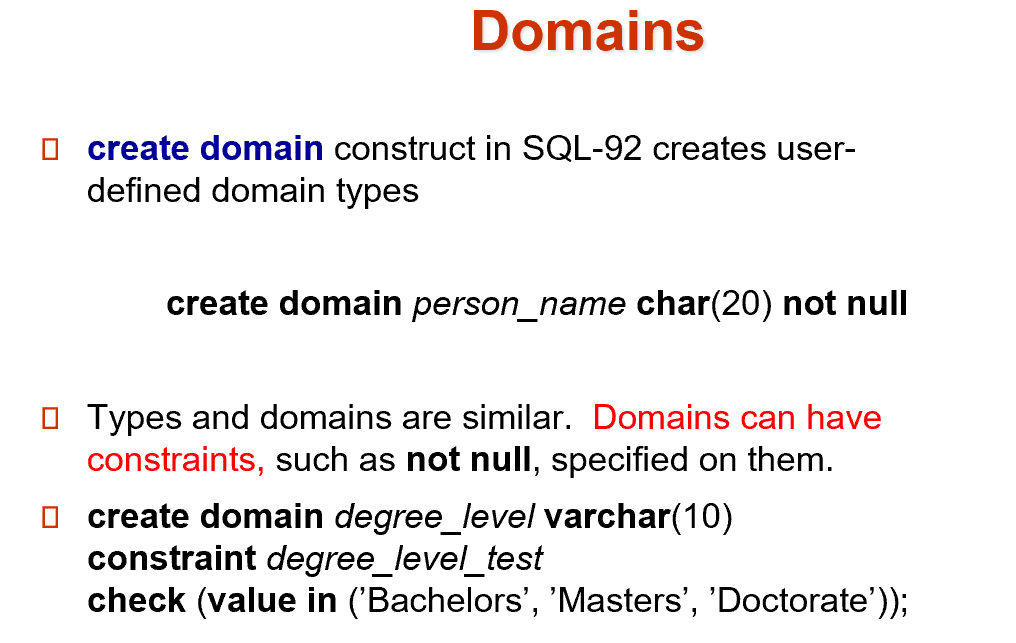

2.2 Domains¶

alt text domain可以加not null或check等限制

2.3 Large-Object Types¶

Large objects (photos, videos, CAD files, etc.) are stored as a large object:

blob: binary large object -- object is a large collection of uninterpreted binary data (whose interpretation is left to an application outside of the database system) 存储大对象数据类型，实际上只是存放指针。

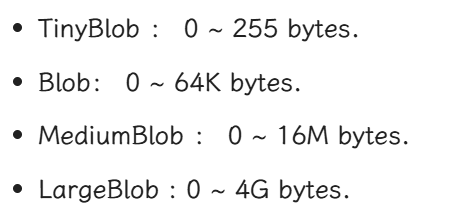

BLOB in MySQL

alt text

clob: character large object -- object is a large collection of character data 文本大对象

3 Integrty Constraints¶

not null
primary key
unique:

unique(A1, A2, ..., Am) The unique specification states that the attributes A1, A2, ..., Am form a super key （不一定是 candidate key)

比如学生个人信息，我们知道 ID 是主键，但实际上邮箱、电话号码等也不能相同的，所以我们要通过语句告诉数据库，数据库会为我们维护这些约束条件。

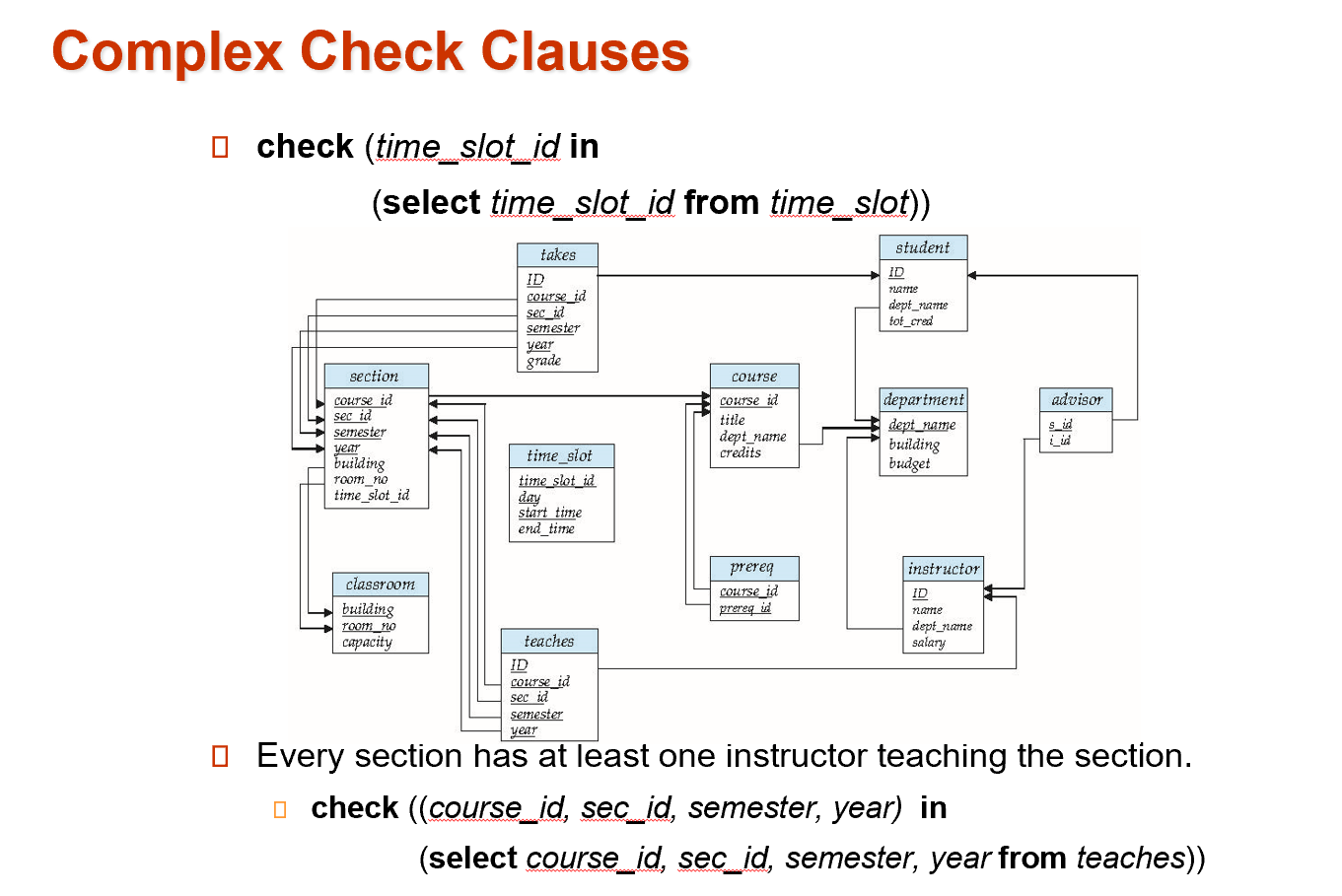

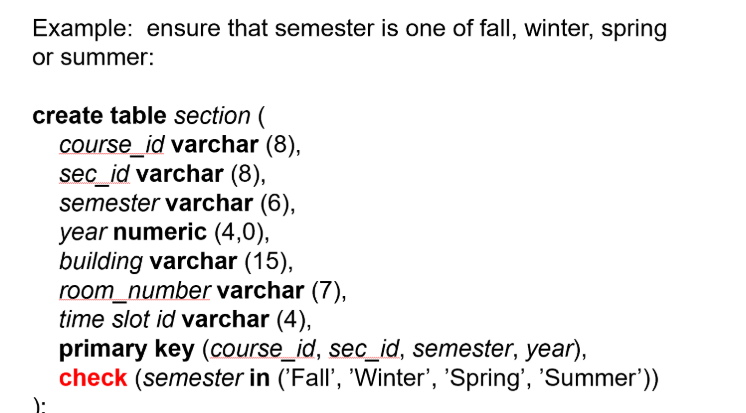

Candidate keys are permitted to be null (in contrast to primary keys).候选键是可以为空的，但是不能有重复 - check (P), where P is a predicate

example

alt text

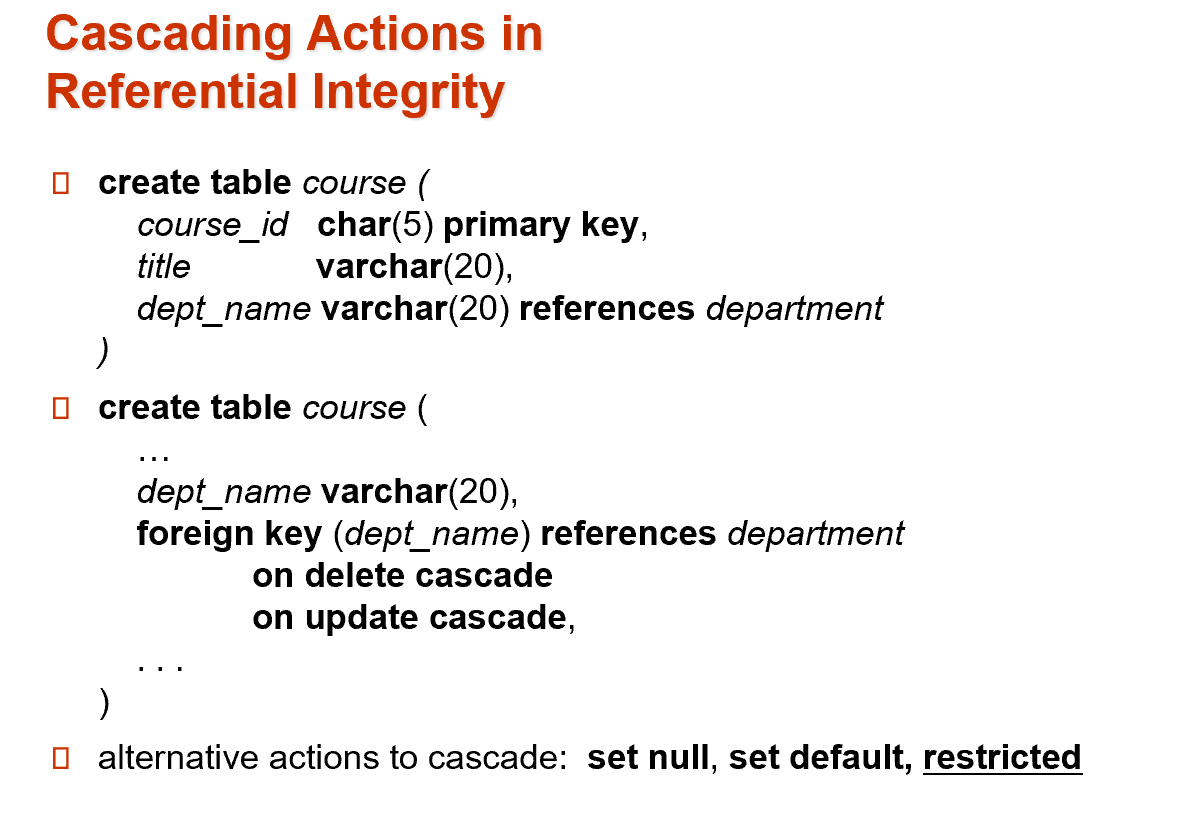

Cascade

alt text

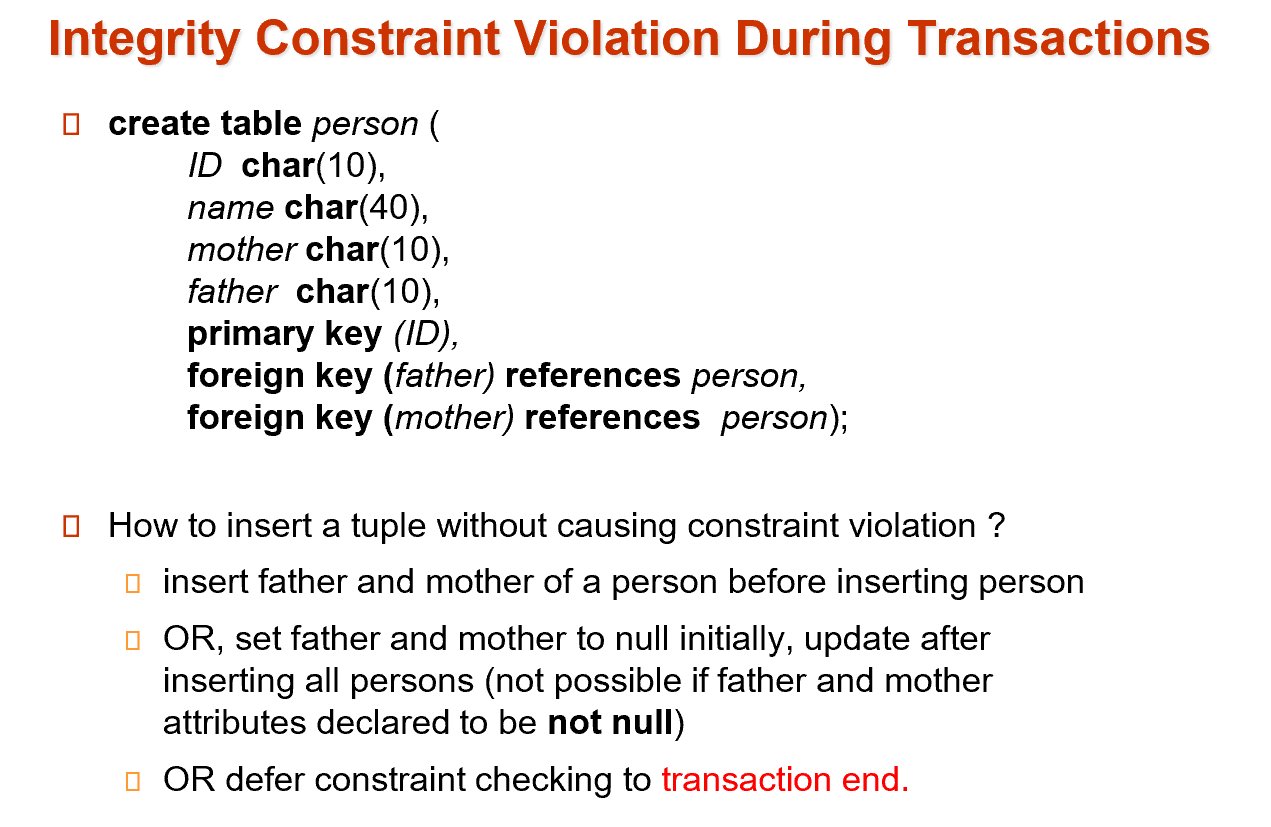

Integrity Constraint Violation During Transaction

alt text 如何在不违反约束的情况下插入元组？在插入人之前插入人的父和母或者，将父和母初始设置为空，在插入所有人之后更新（如果父和母属性声明为非空则不可能）或者将约束检查推迟到事务结束。

alt text

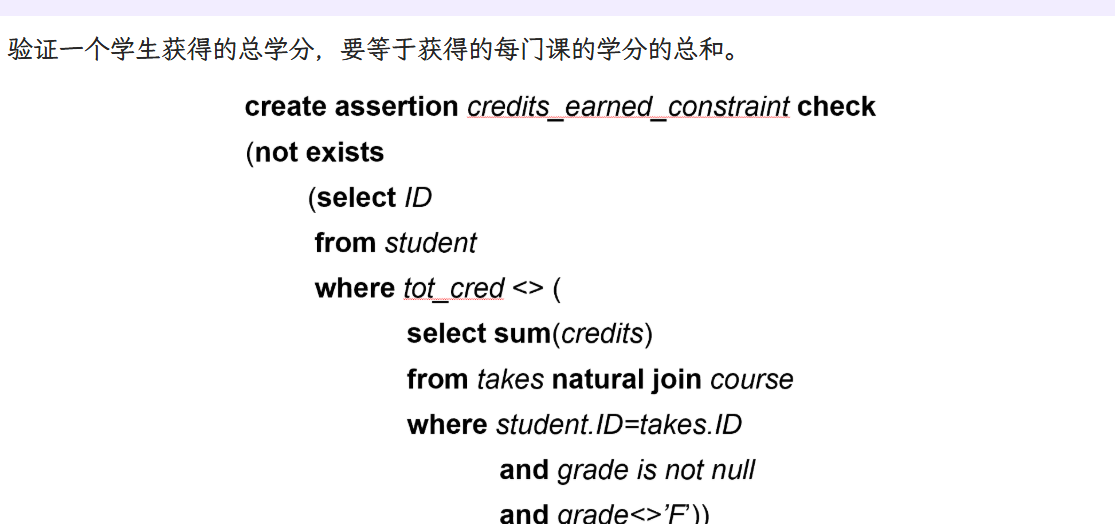

assertion:create assertion < assertion-name > check < predicate >;

example

alt text

4 views¶

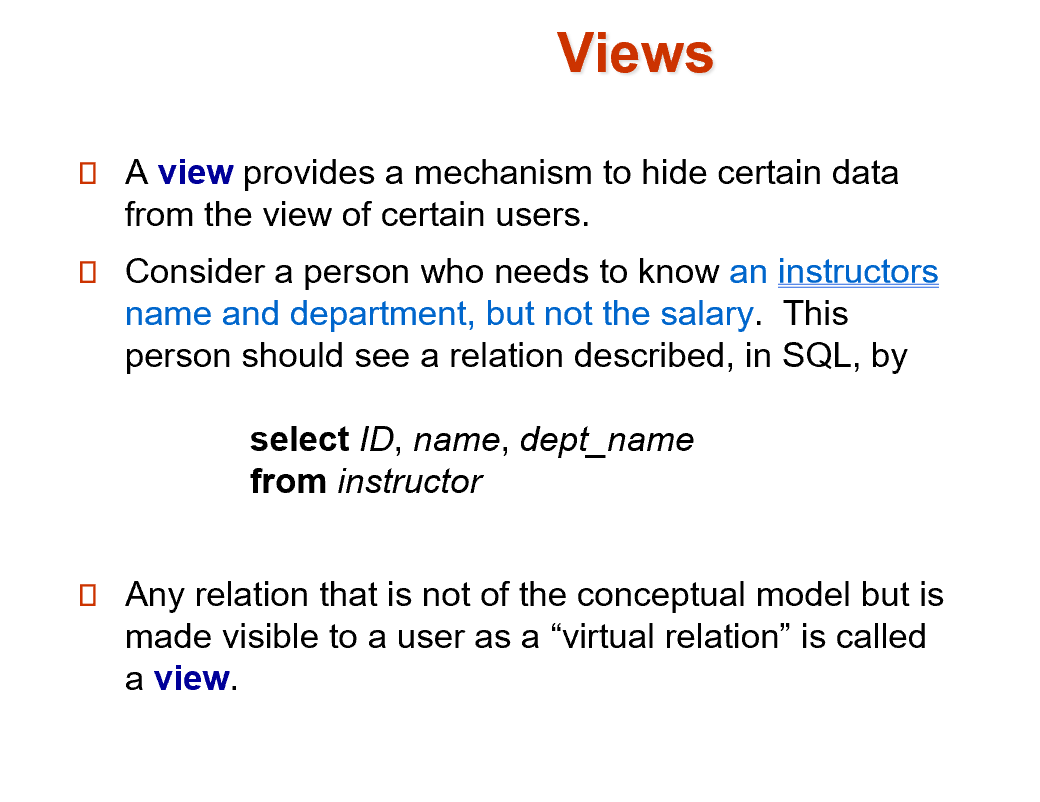

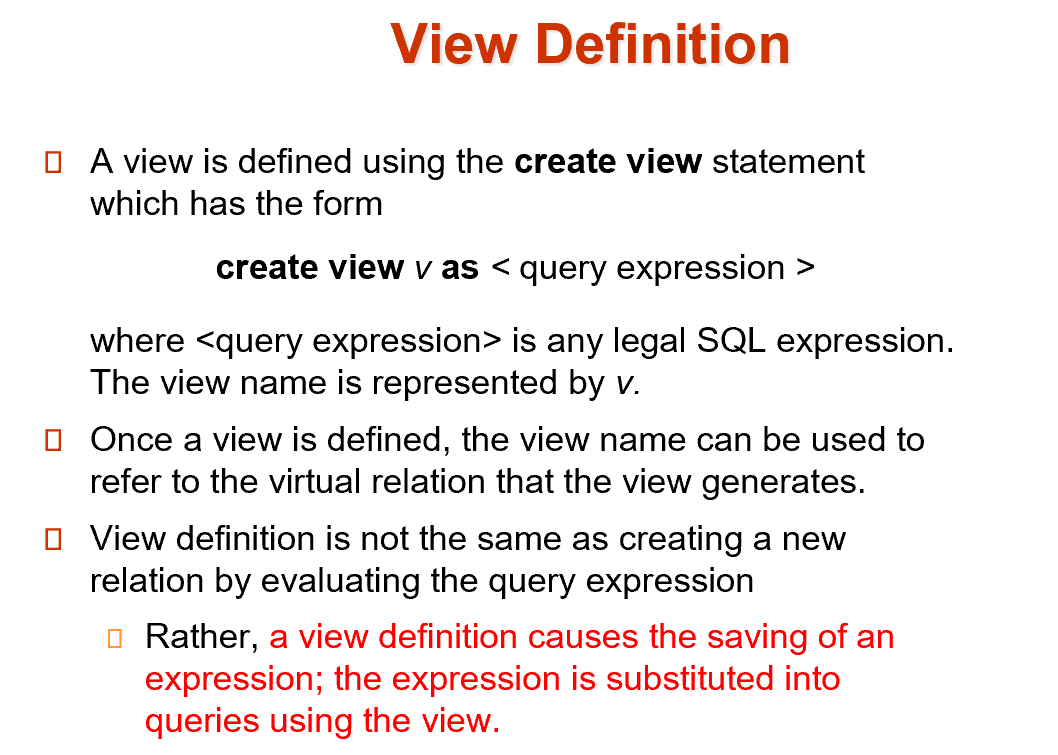

4.1 view definition¶

alt text

view 可以隐掉一些细节，或者加上一些统计数据。可以把 view 当作表进行查询。

隐藏不必要的细节，简化用户视野
方便查询书写
有利于权限控制（如用户可以看到工资总和，但不能看到每个人的工资）
有独立性，使得数据库应用具有较强的适应性。

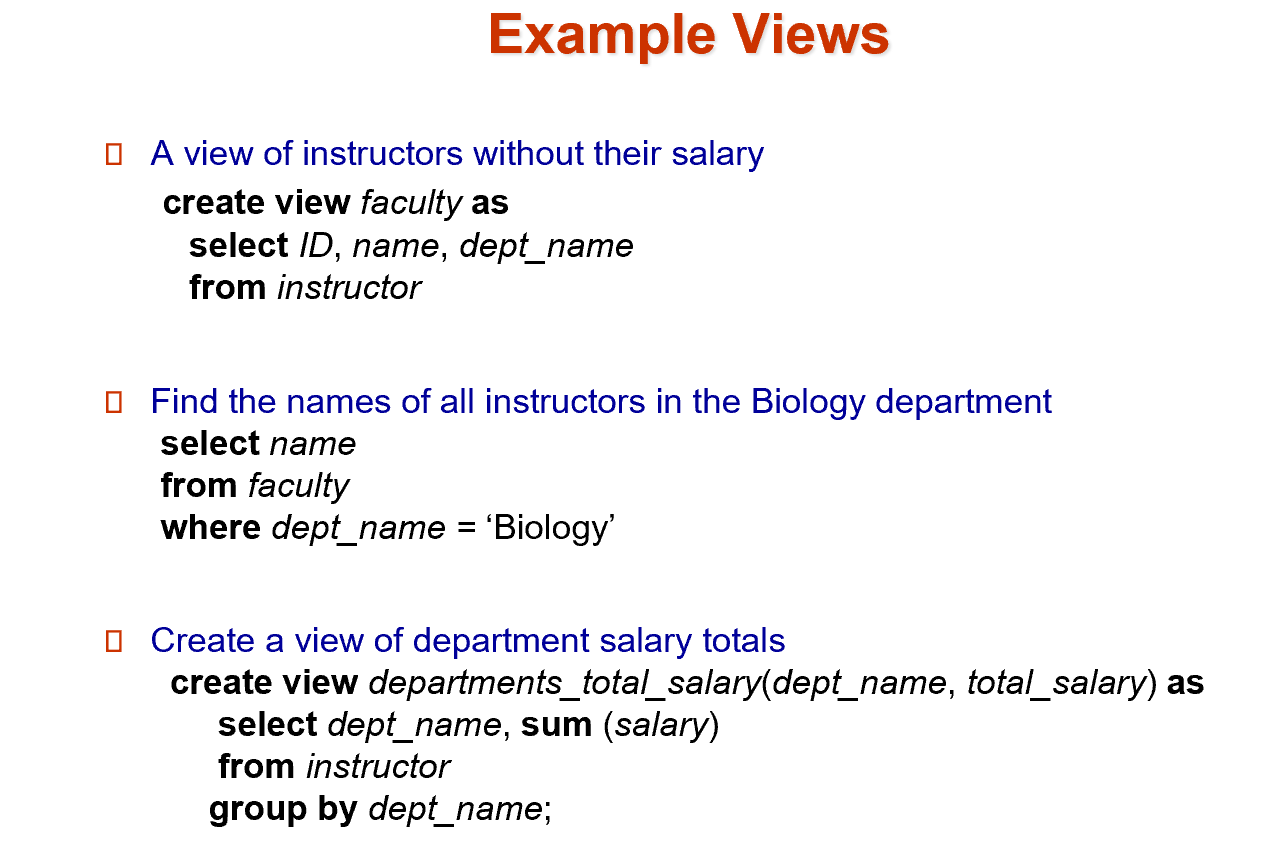

example views

alt text

可以基于视图再定义视图。

view defined using other views

alt text

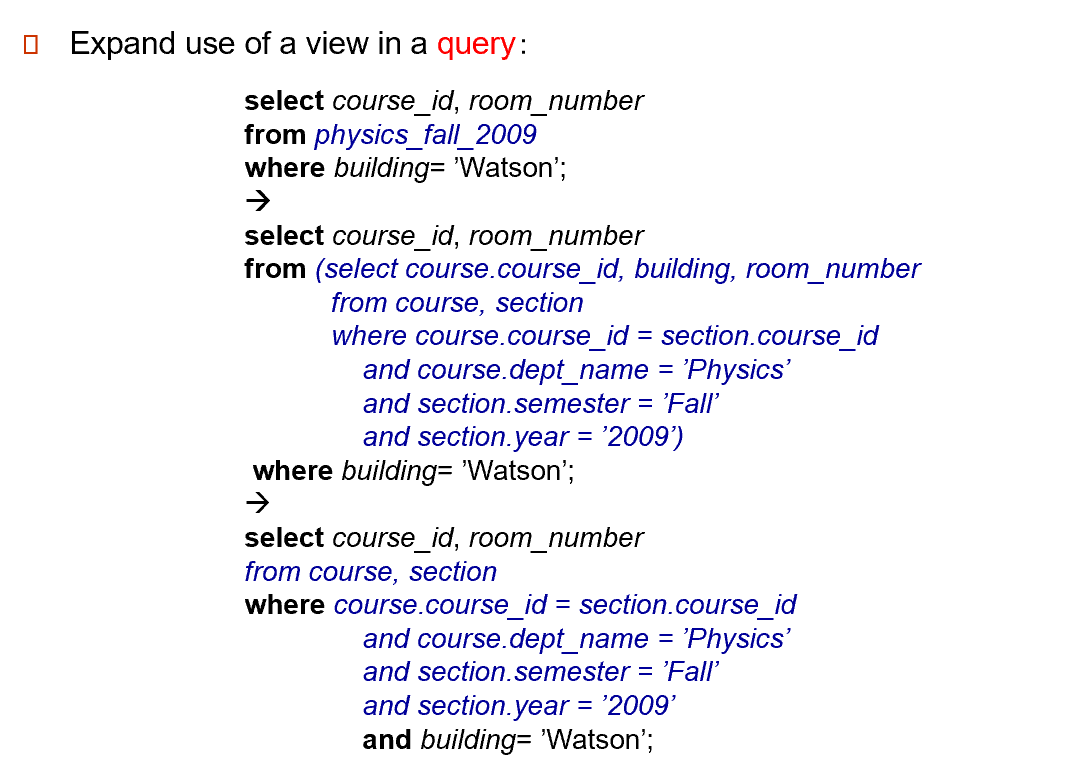

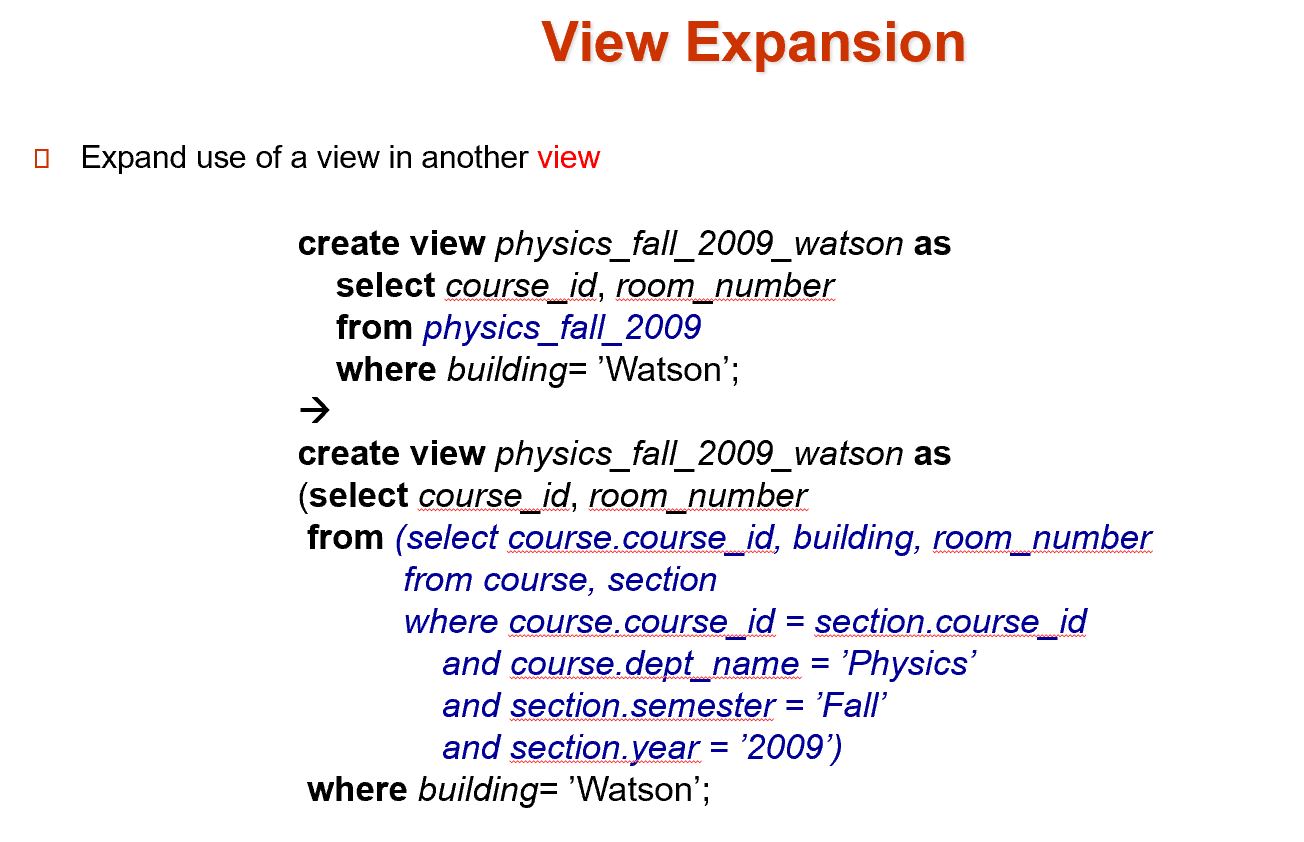

view expansion

alt text

4.2 update of a view¶

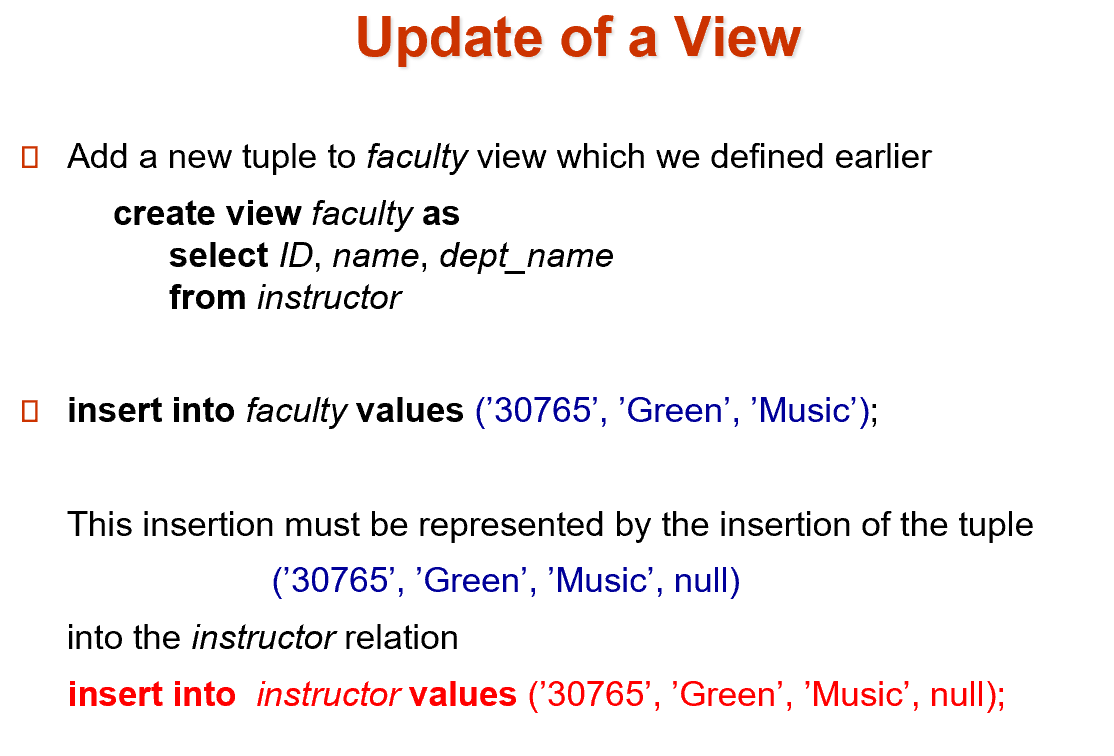

对一个 view 进行修改，相当于通过这个窗口对原表继续修改。 alt text 插入后，原表也会有这条数据，对于其缺少的 salary 属性，我们设定为 NULL. 如果这个属性的约束是 not NULL 的，那么我们无法执行这次插入。

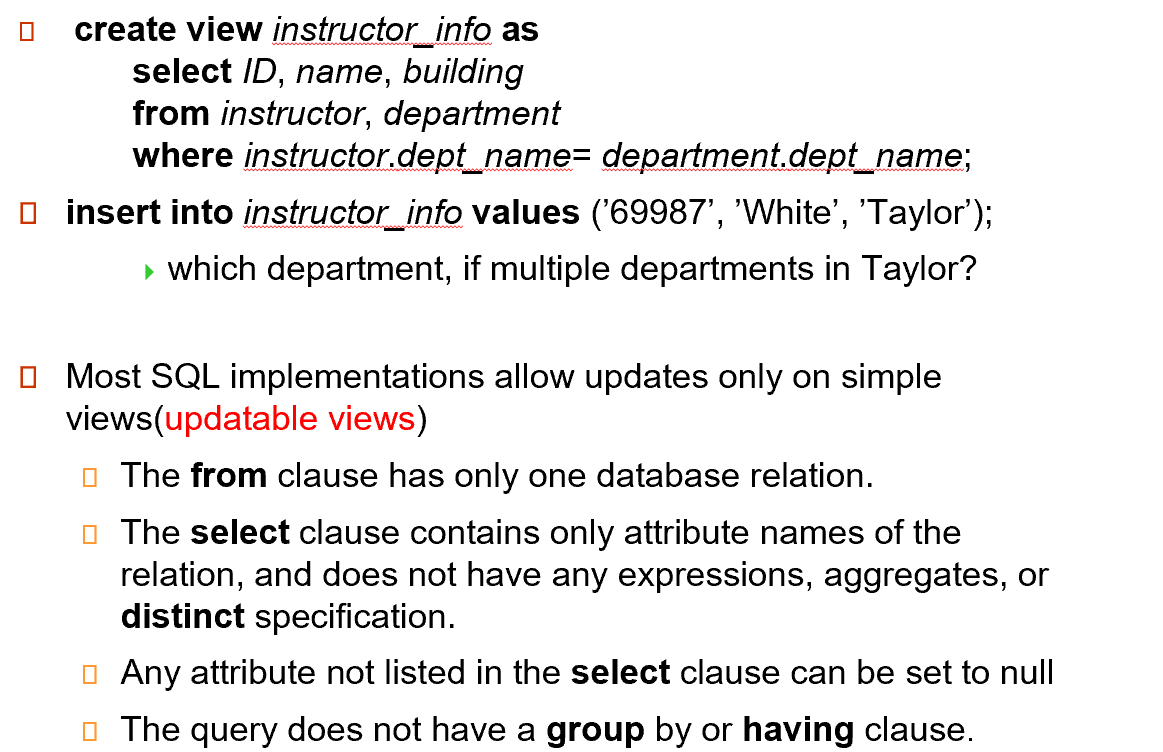

Tip

alt text

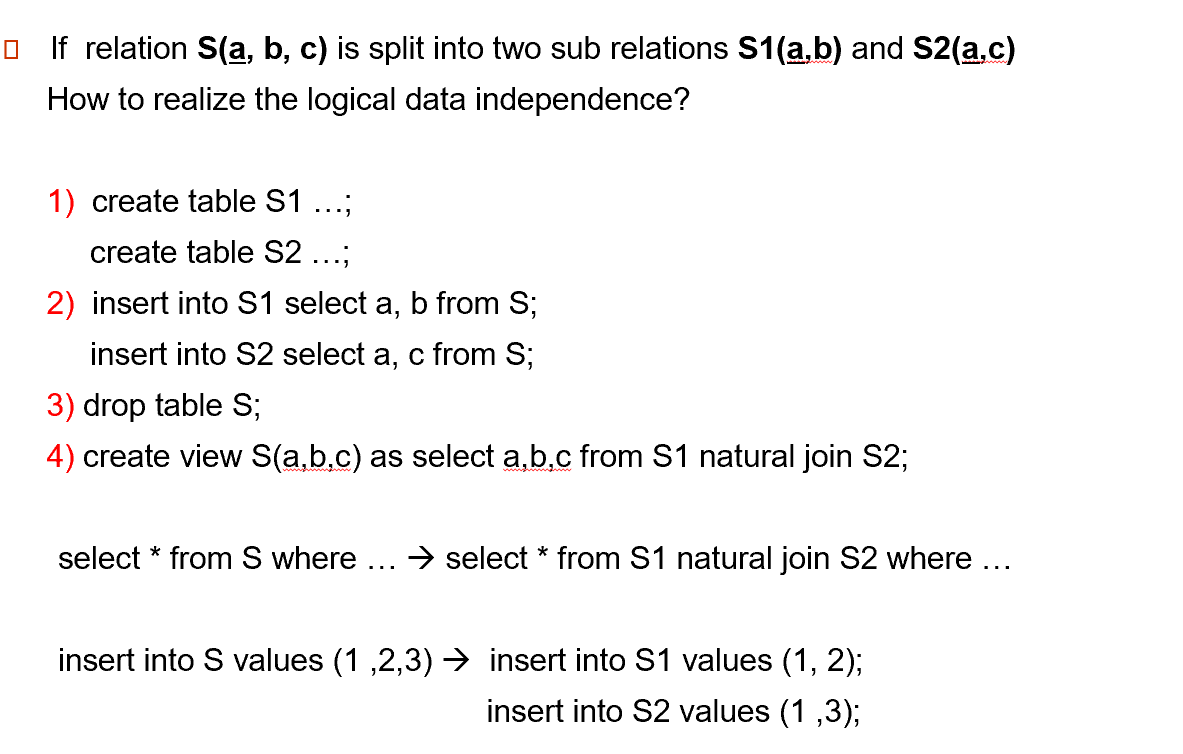

4.3 view and logical data independence¶

alt text

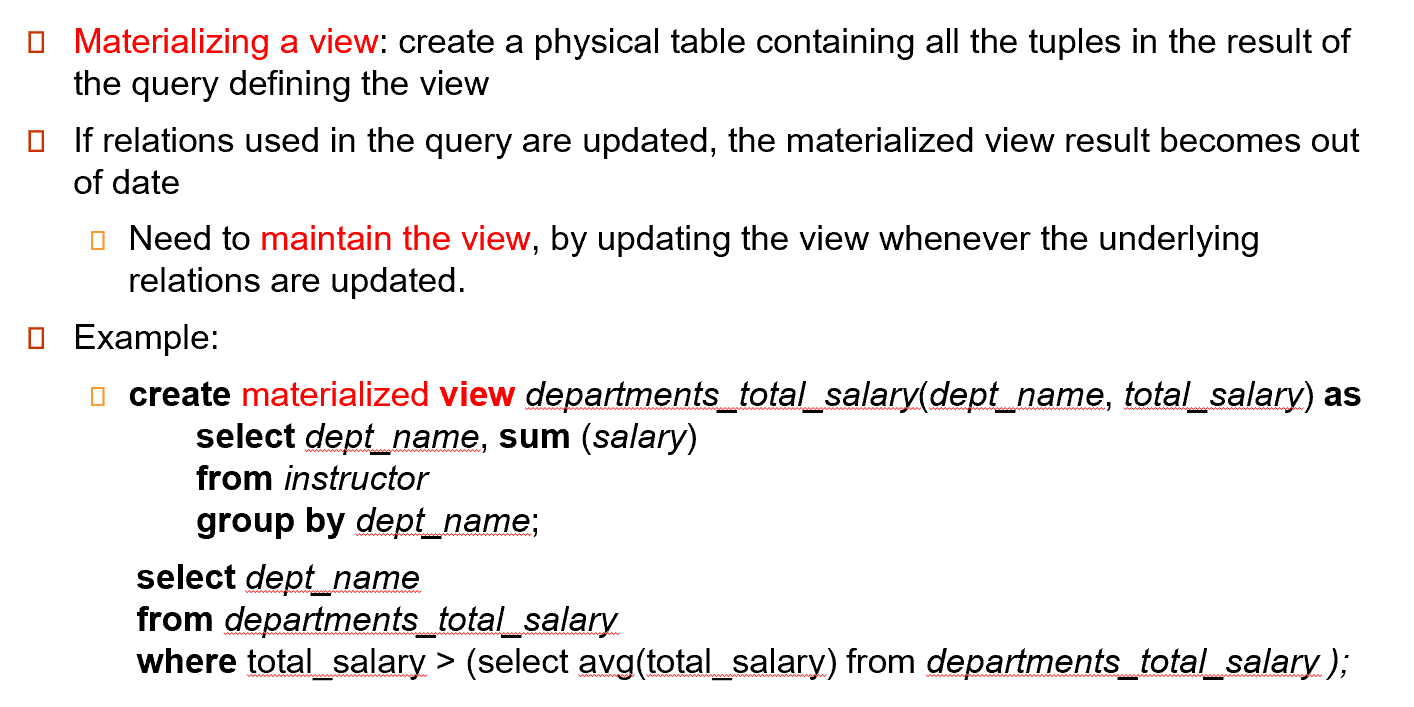

4.4 materialized view¶

alt text

5 indexes¶

alt text indexes are data structures used to speed up access to records with specified values for index attributes.

Index 相当于在数据上建立了 B+ 树索引。（物理层面）

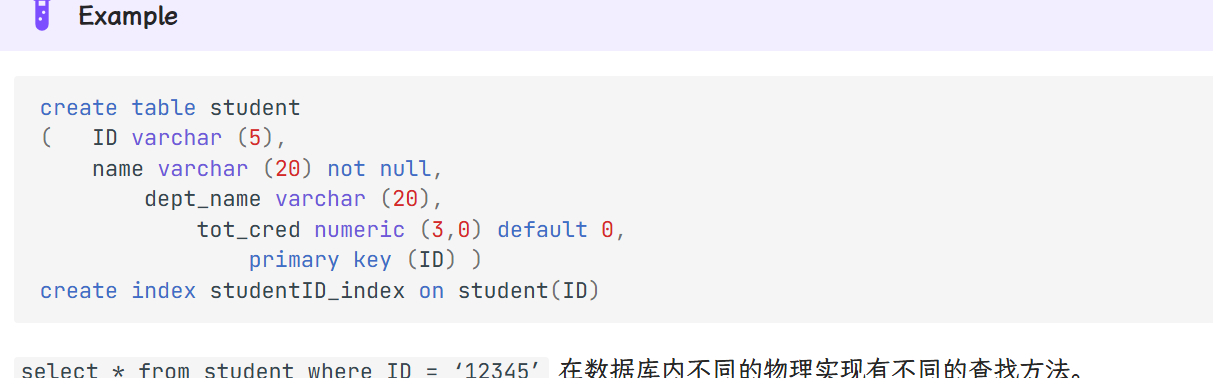

example

alt text

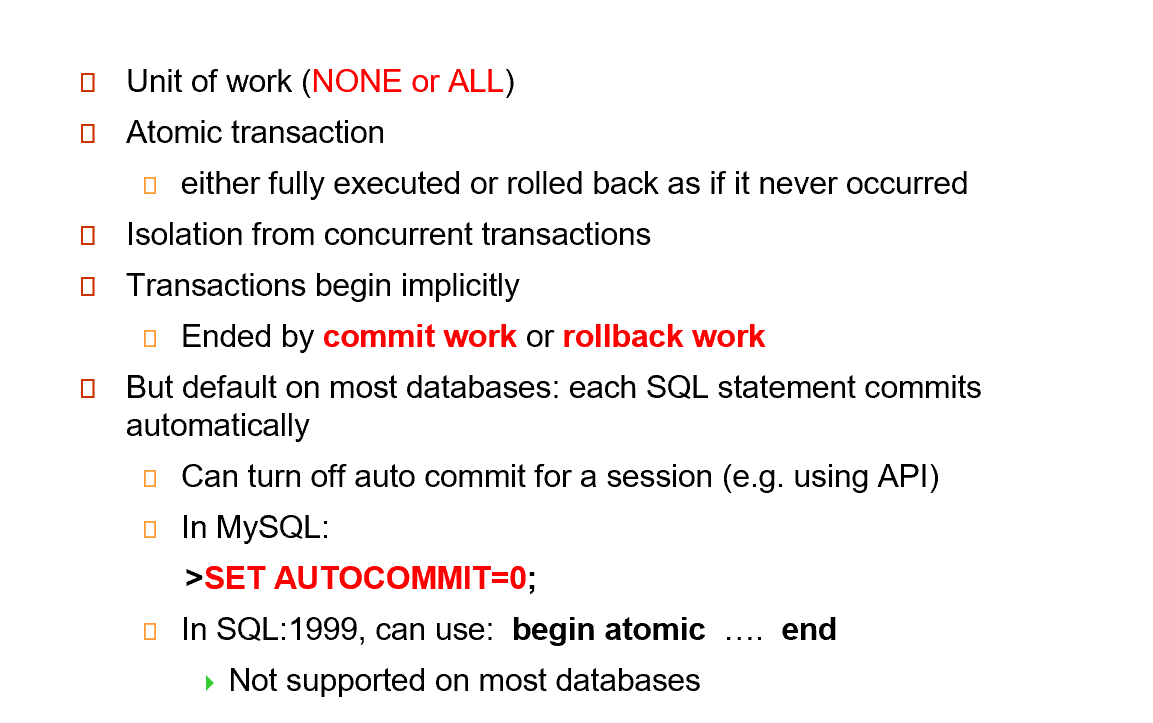

6 Transaction¶

alt text

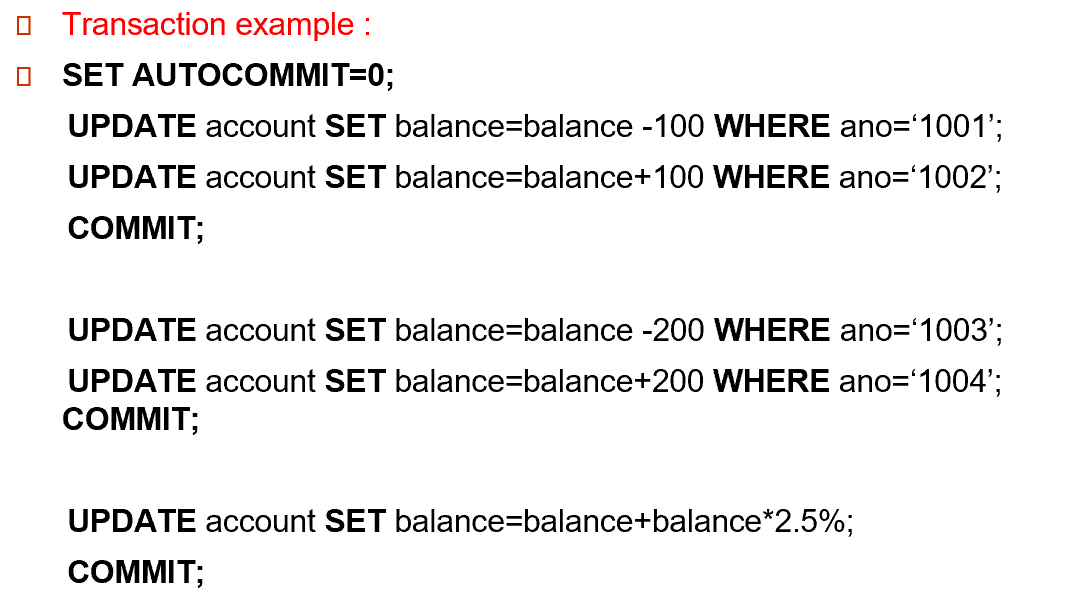

example

alt text

6.1 ACID properties¶

A transaction is a unit of program execution that accesses and possibly updates various data items.To preserve the integrity of data the database system must ensure: (原子性、一致性、独立性、持续性)

Atomicity. Either all operations of the transaction are properly reflected in the database or none are.
Consistency. Execution of a transaction in isolation preserves the consistency of the database. 数据库执行事务前后都是一致的。
Isolation. Although multiple transactions may execute concurrently, each transaction must be unaware of other concurrently executing transactions. Intermediate transaction results must be hidden from other concurrently executed transactions. 很多事情共同执行，他们不能互相影响。
- That is, for every pair of transactions Ti and Tj, it appears to Ti that either Tj finished execution before Ti started, or Tj started execution after Ti finished.
Durability. After a transaction completes successfully, the changes it has made to the database persist, even if there are system failures. 数据库的事务一旦提交，这个修改就要持续地保存到数据库中去，不能丢失。如磁盘出问题了，断电了等会引发这个问题。通常使用日志。
