chapter15: Query Processing

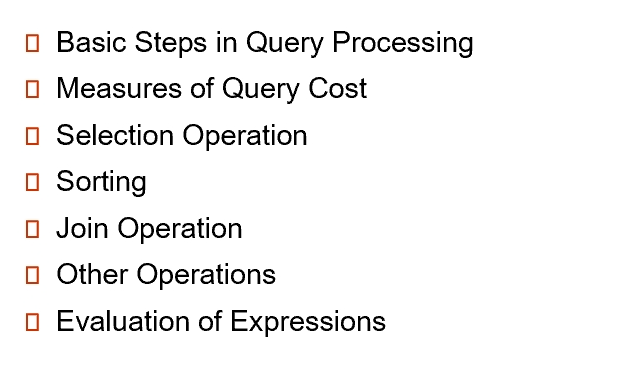

Abstract

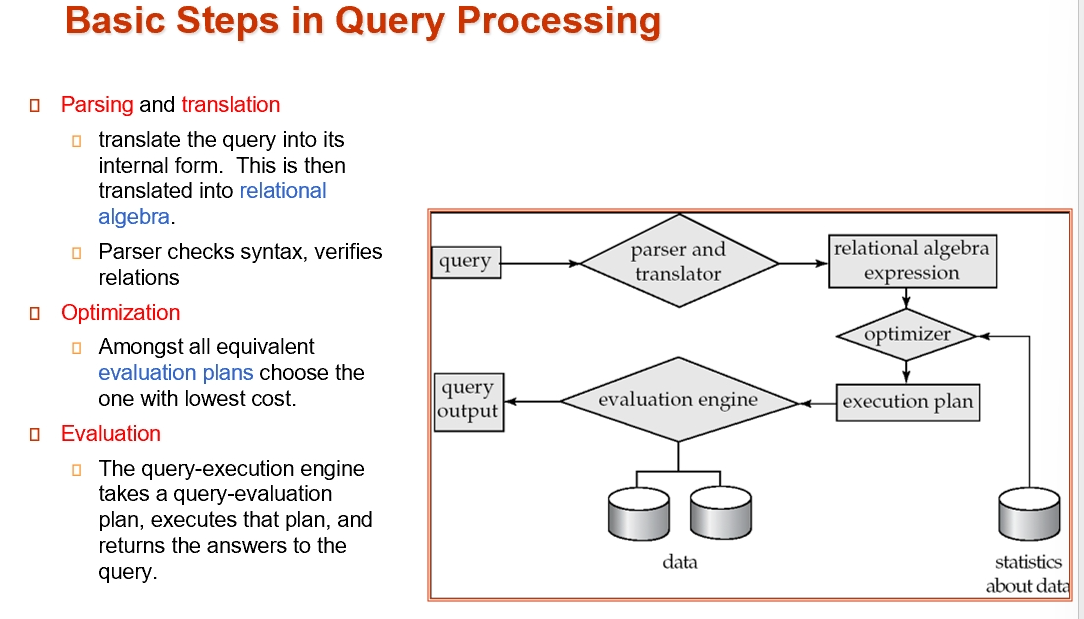

1 Basic Steps in Query Processing

经过语法分析、语义检查翻译成关系表达式，经过查询优化转化成执行计划（目标代码），由求值引擎得到输出。

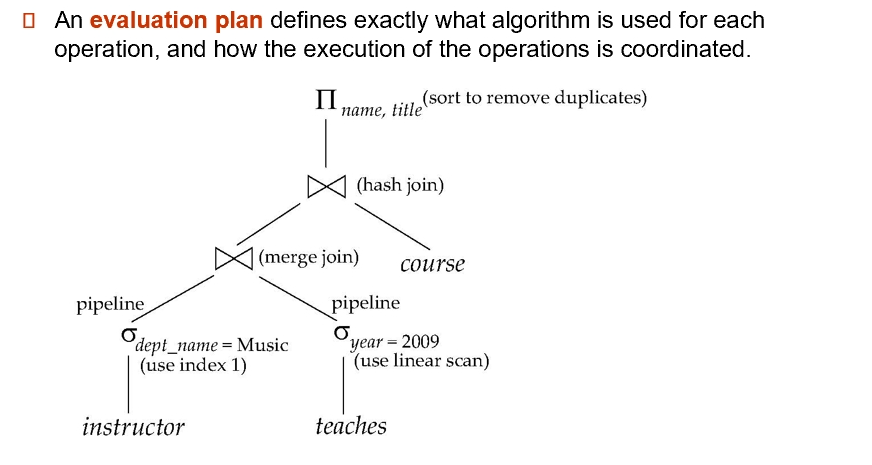

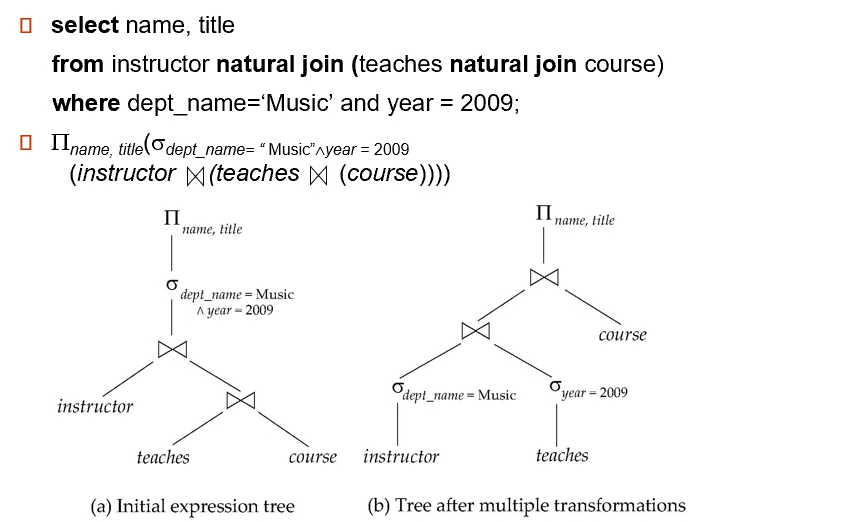

Example

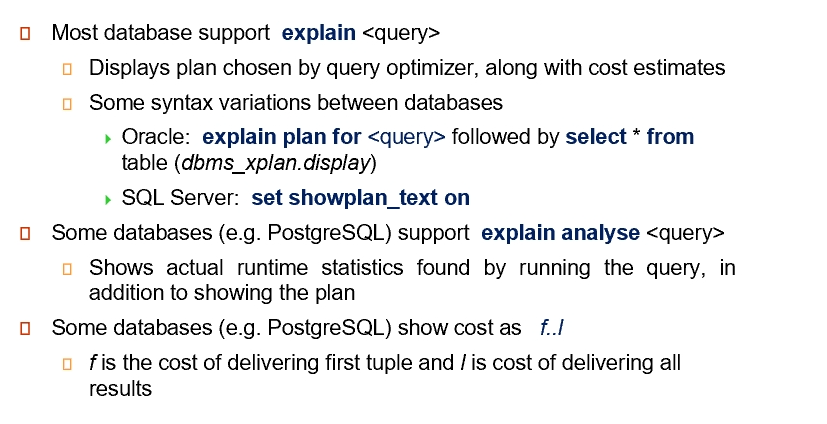

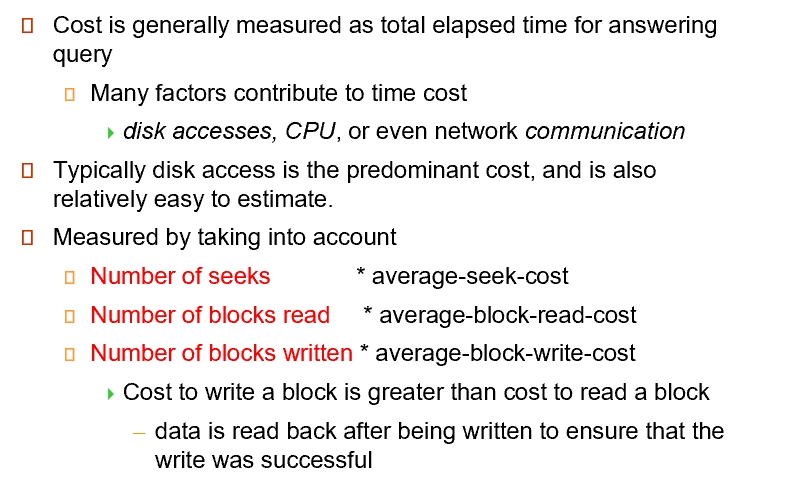

2 Measures Of Query Cost

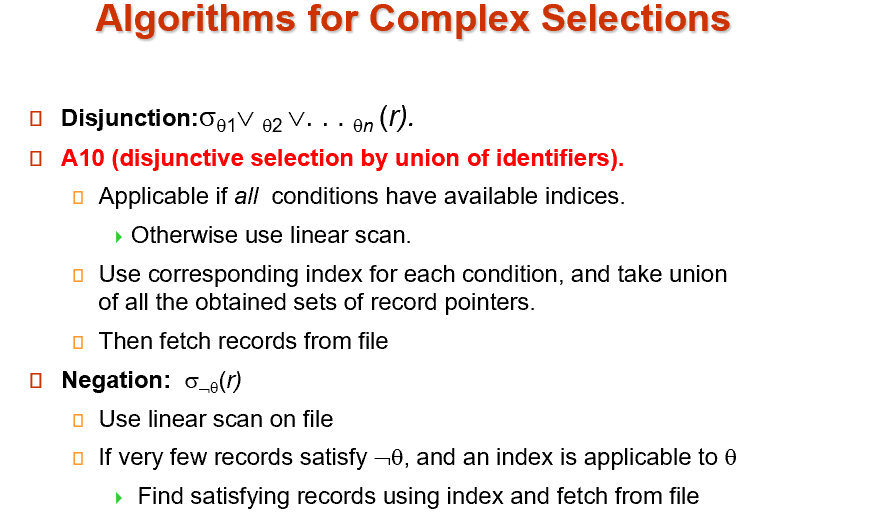

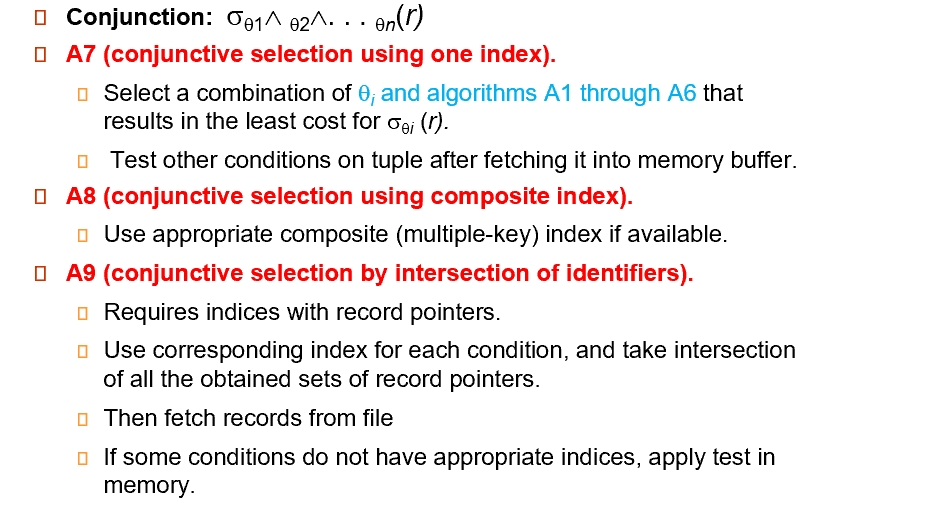

3 Selection Operation

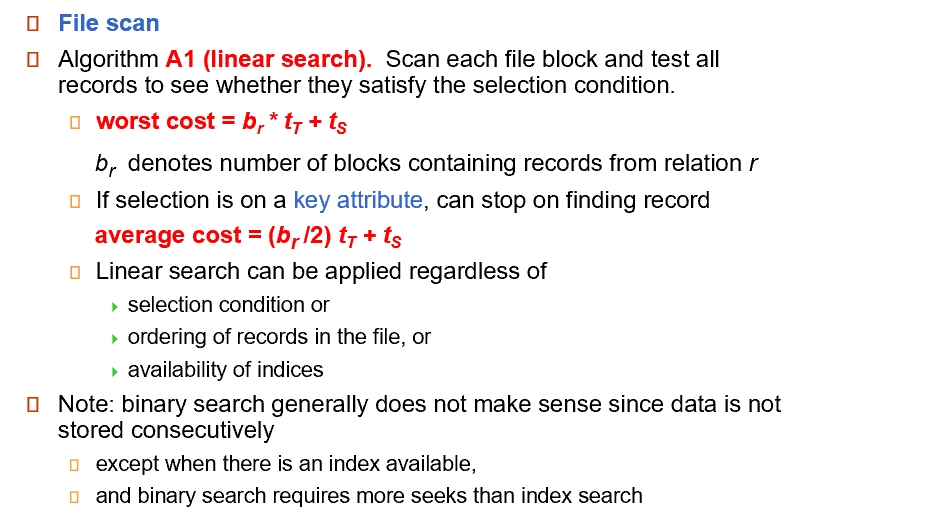

3.1 file scan

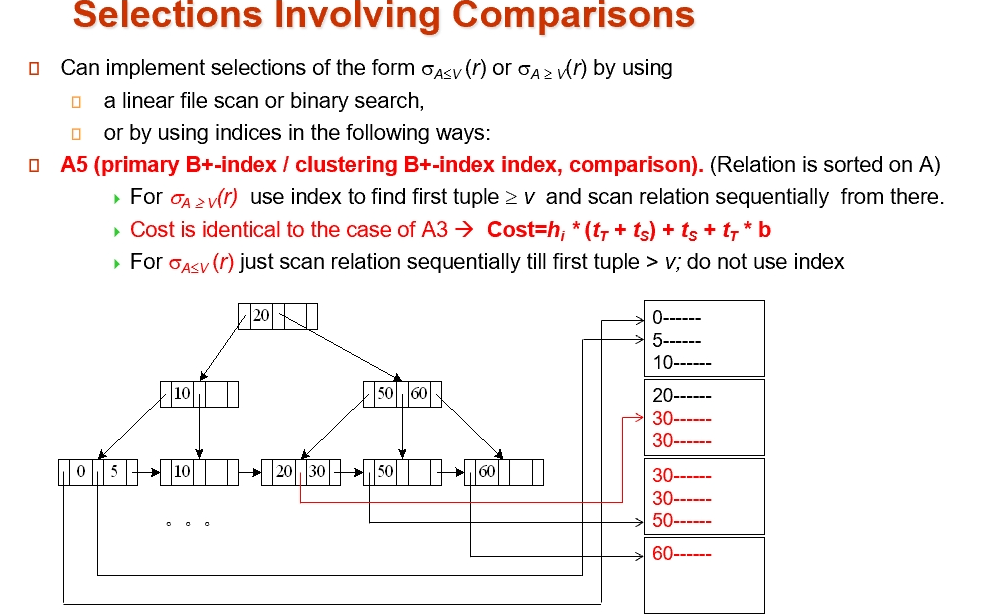

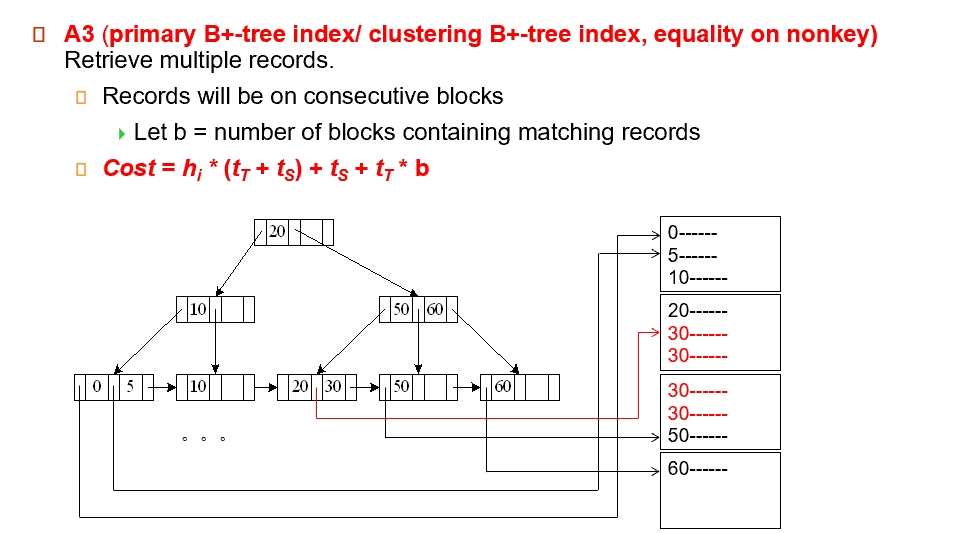

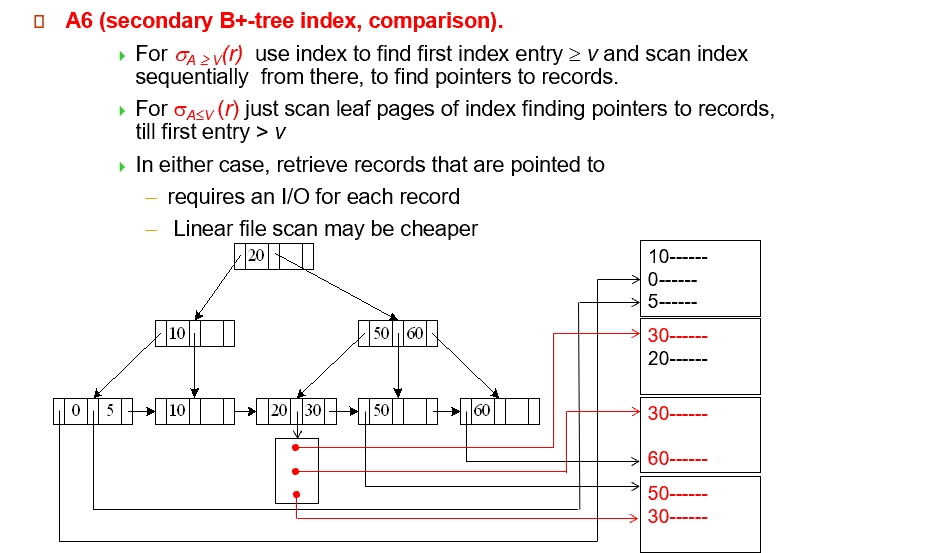

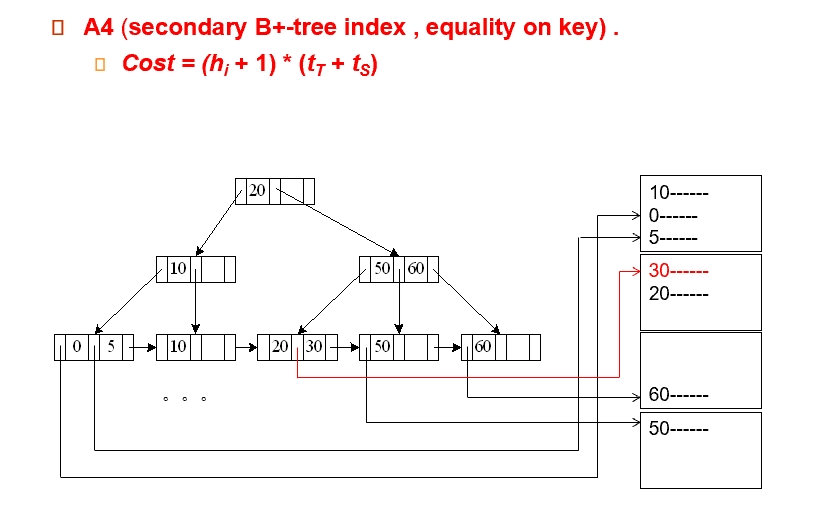

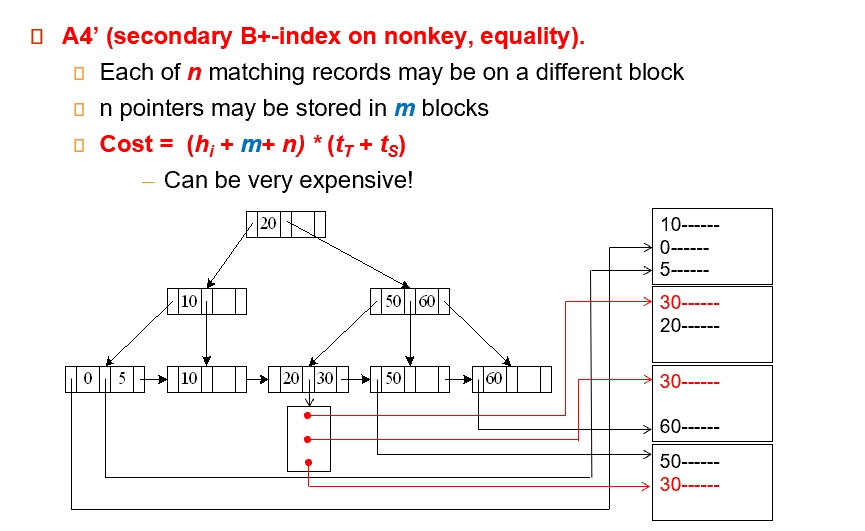

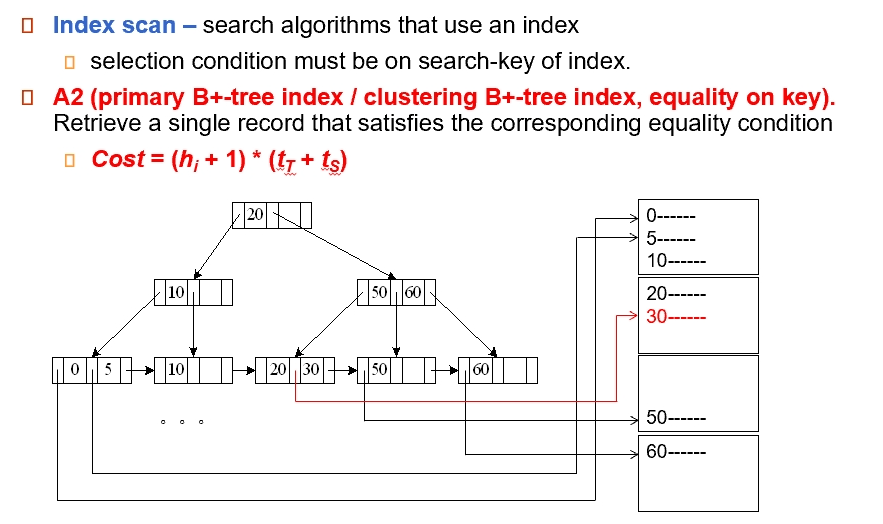

3.2 index scan

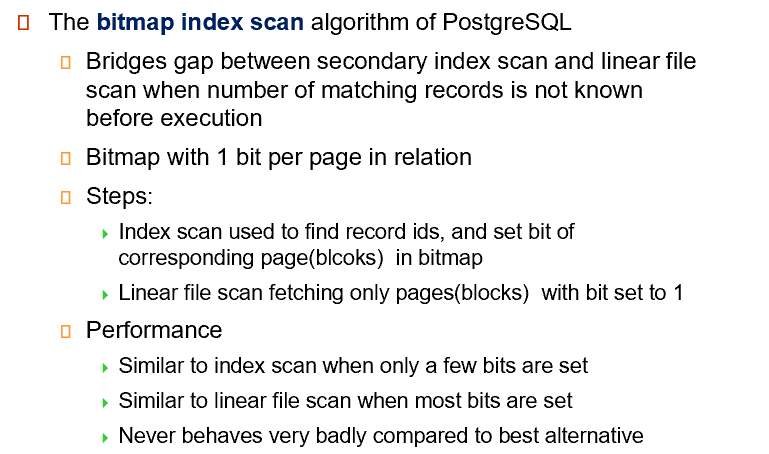

3.3 Bitmap Index Scan

4 Sorting

• We may build an index on the relation, and then use the index to read the relation in sorted order. May lead to one disk block access for each tuple.
• For relations that fit in memory, techniques like quicksort can be used.
• For relations that don’t fit in memory,external sort-merge is a good choice.

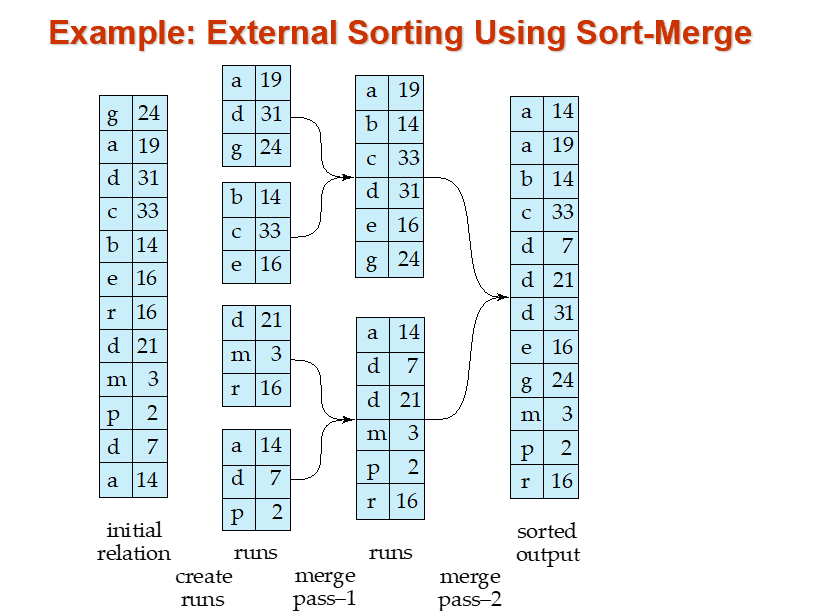

Example

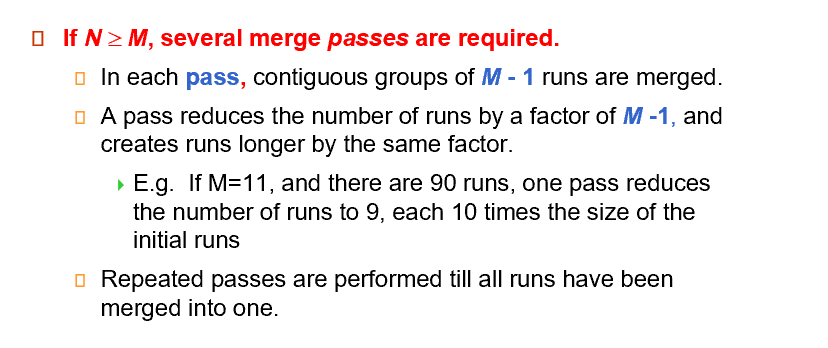

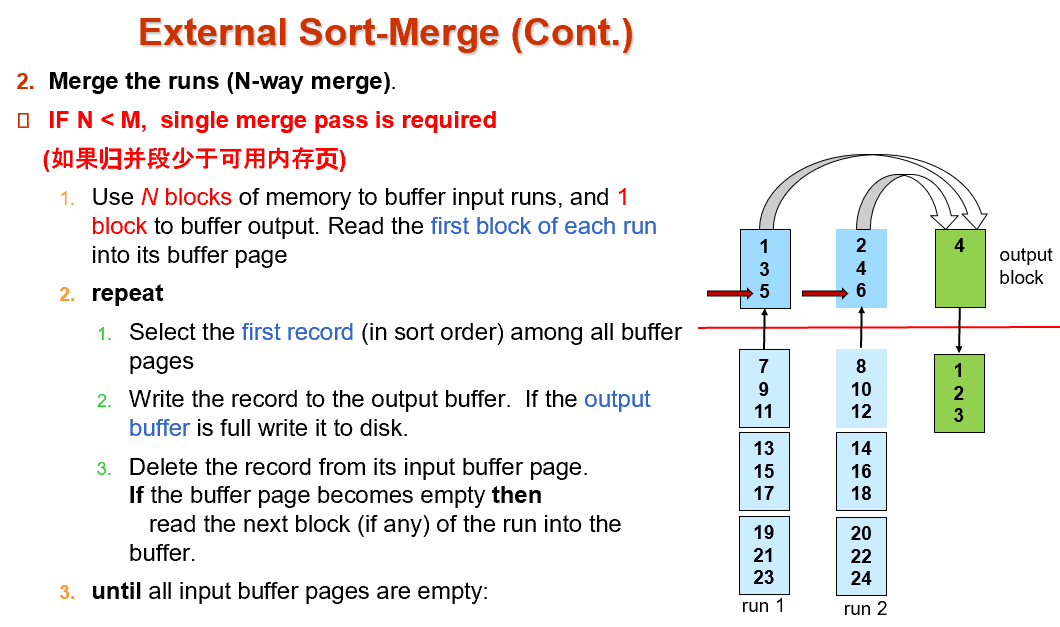

4.1 Procedure

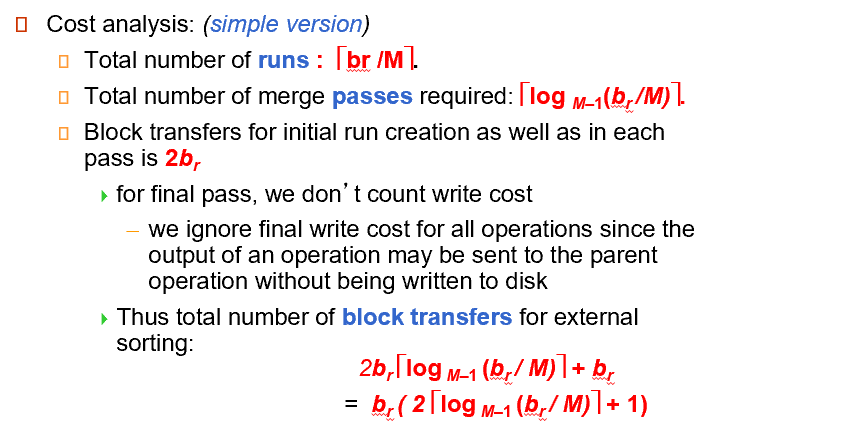

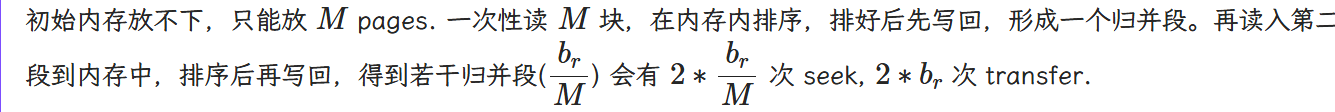

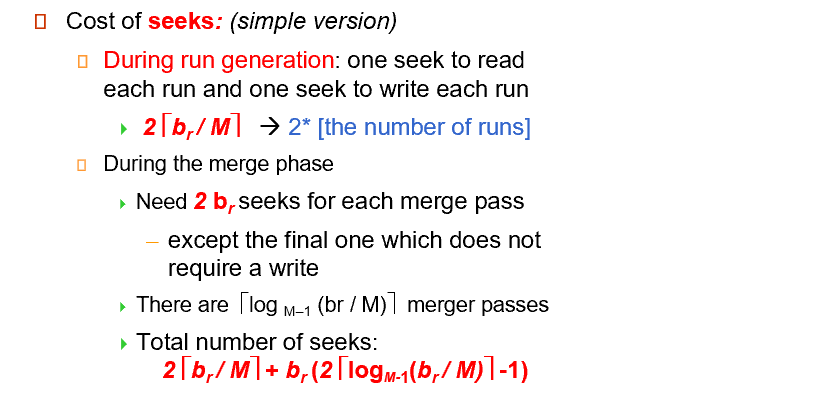

4.2 Cost Analysis

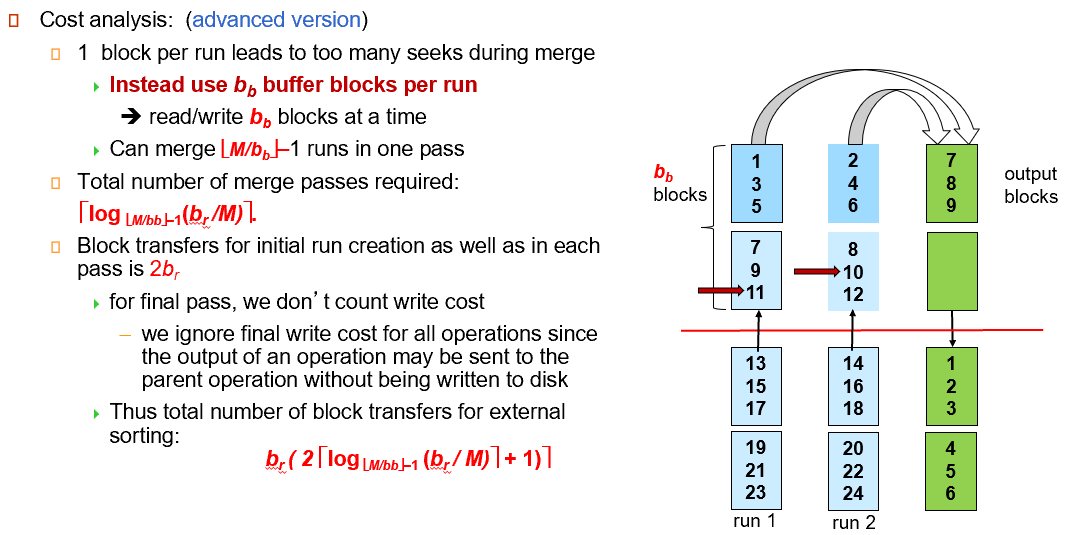

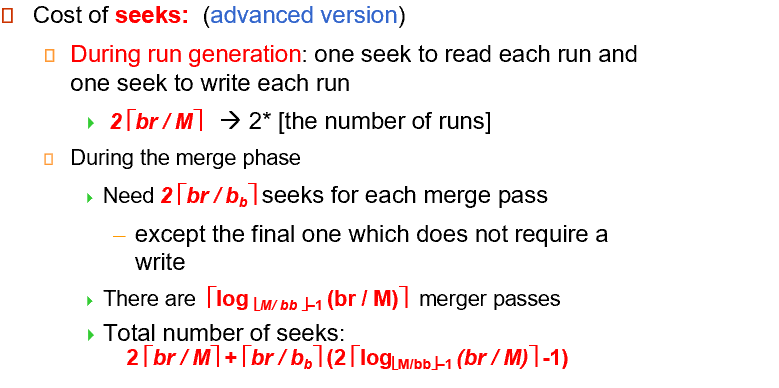

4.3 New Version

5 Join Operation

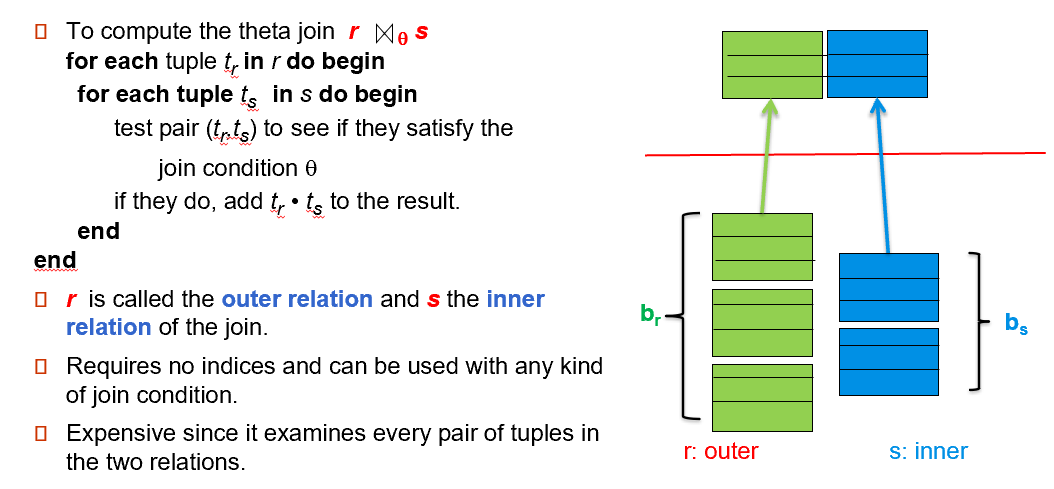

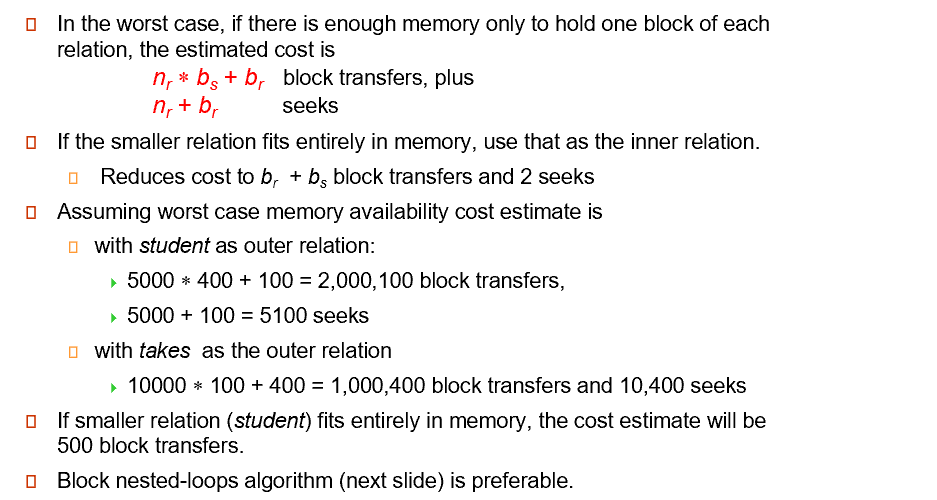

5.1 Nested-Loop Join

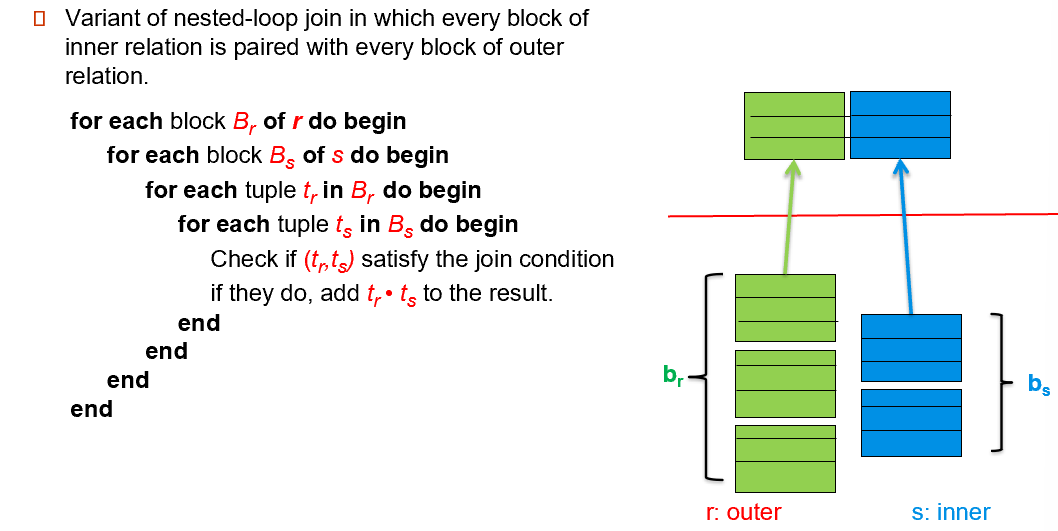

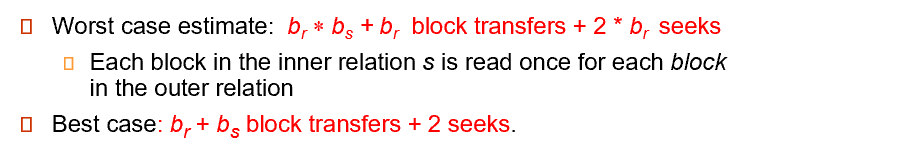

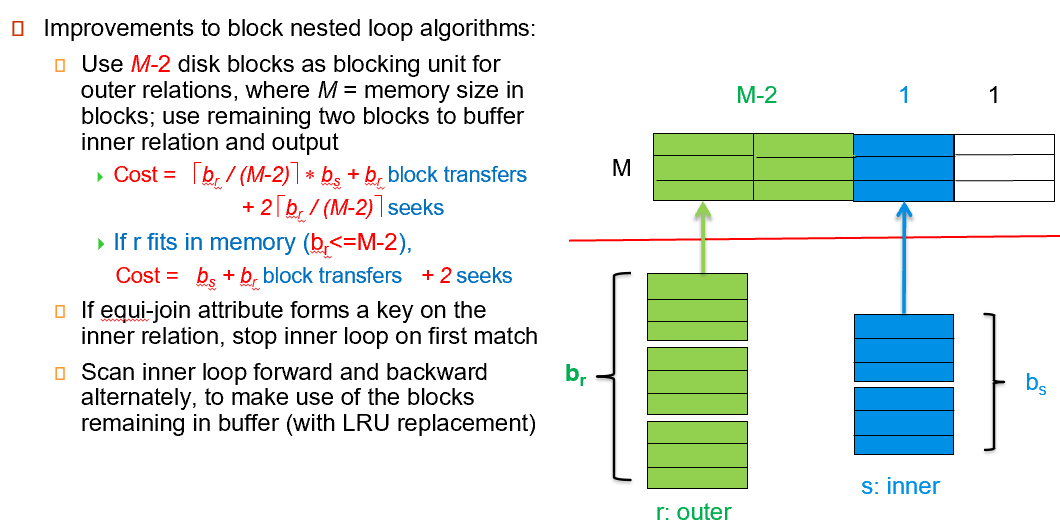

5.2 Block Nested-Loop Join

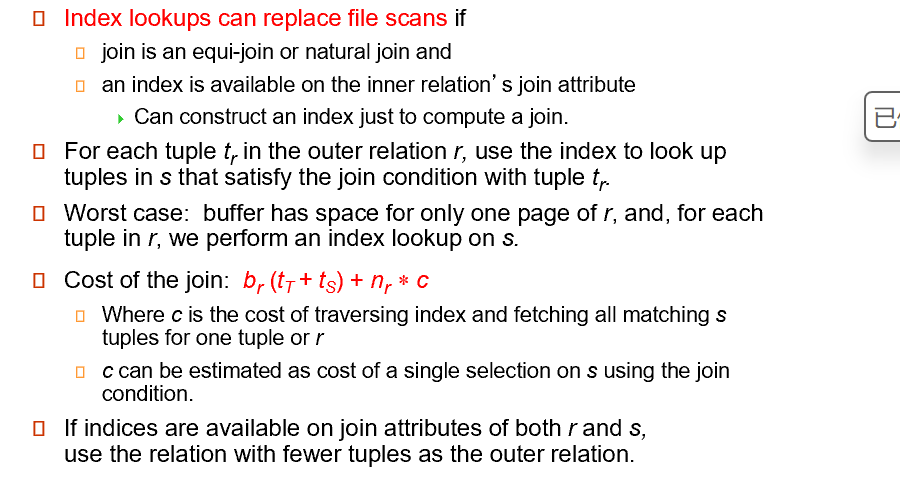

5.3 Indexed Nested-Loop Join

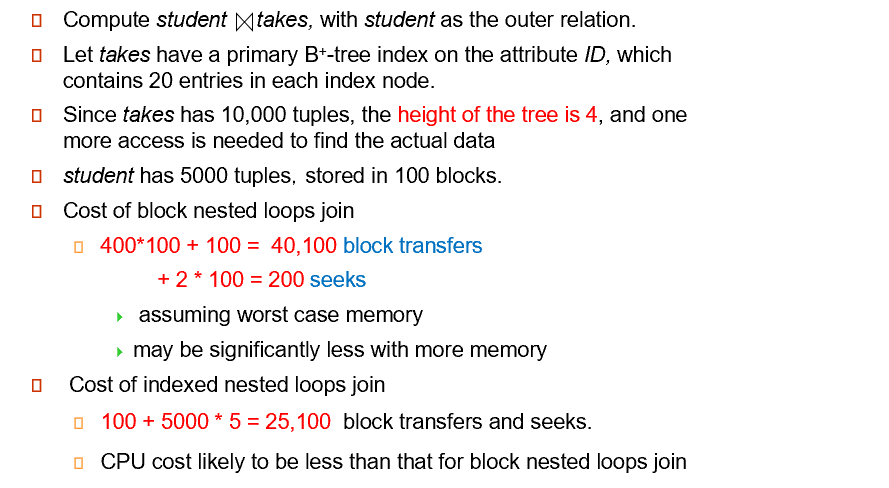

Example

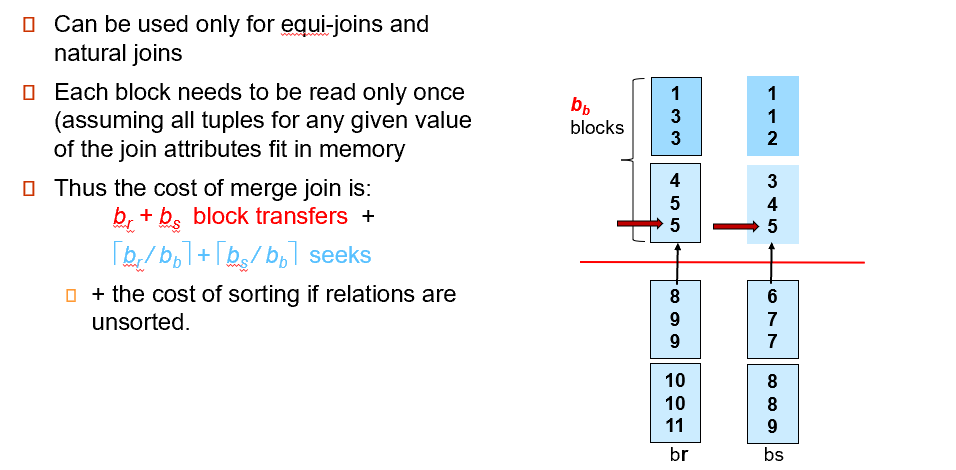

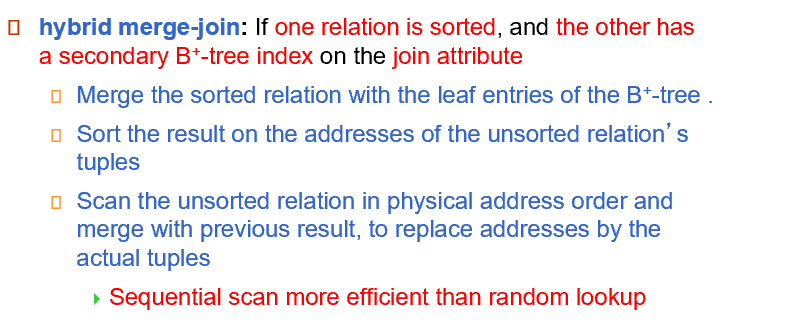

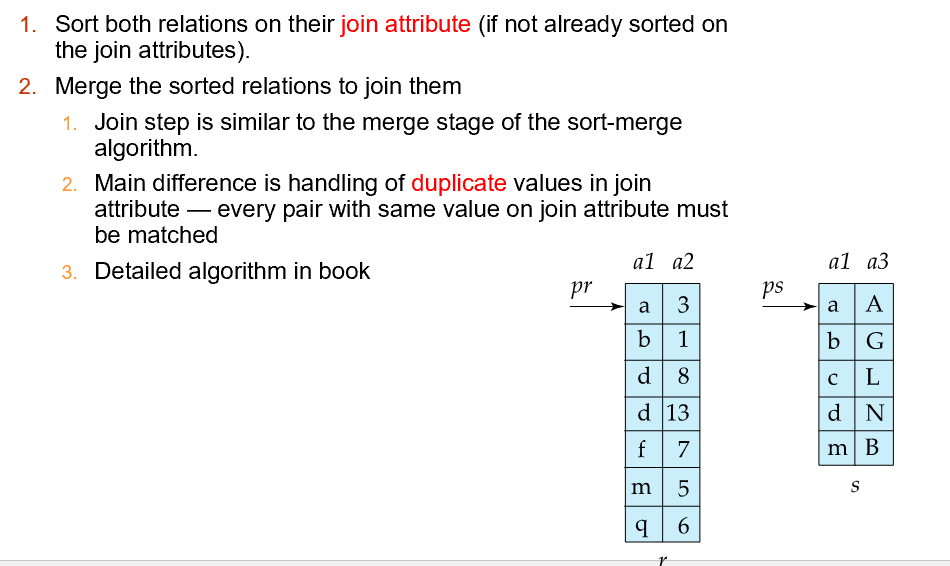

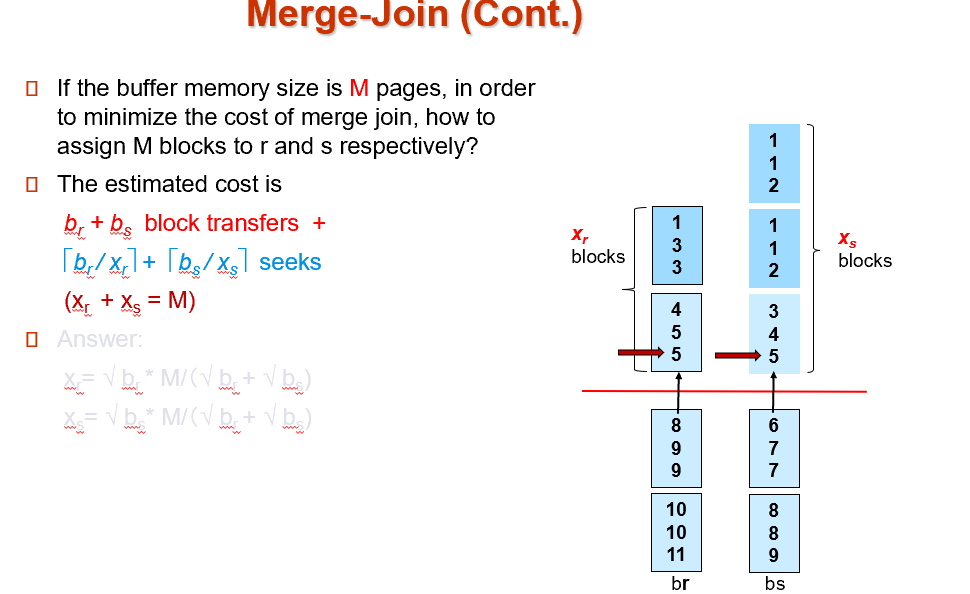

5.4 Merge-Join

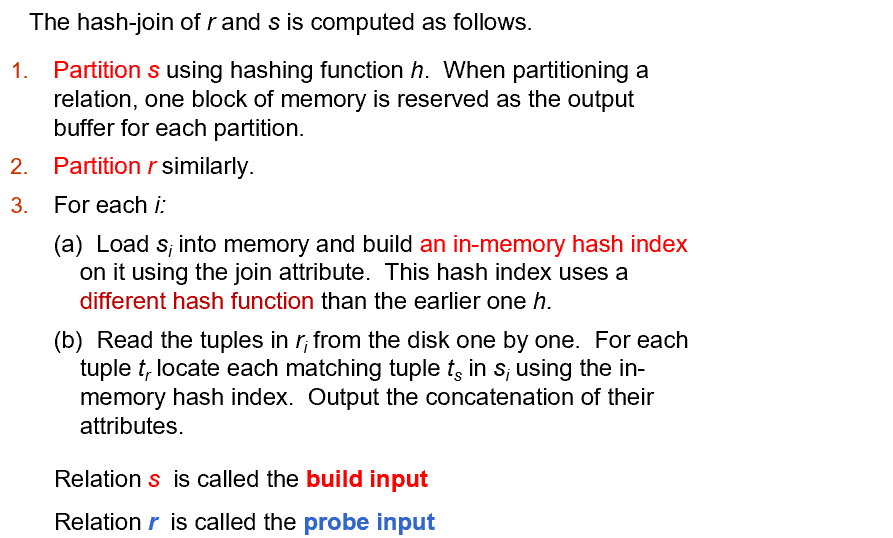

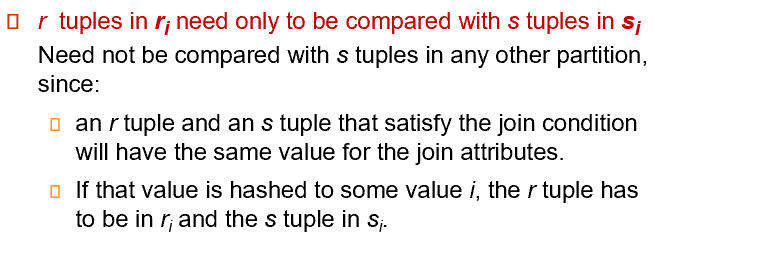

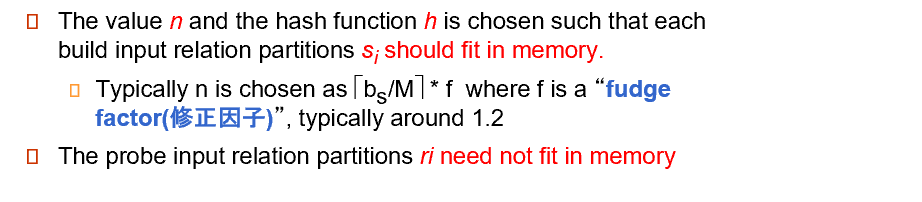

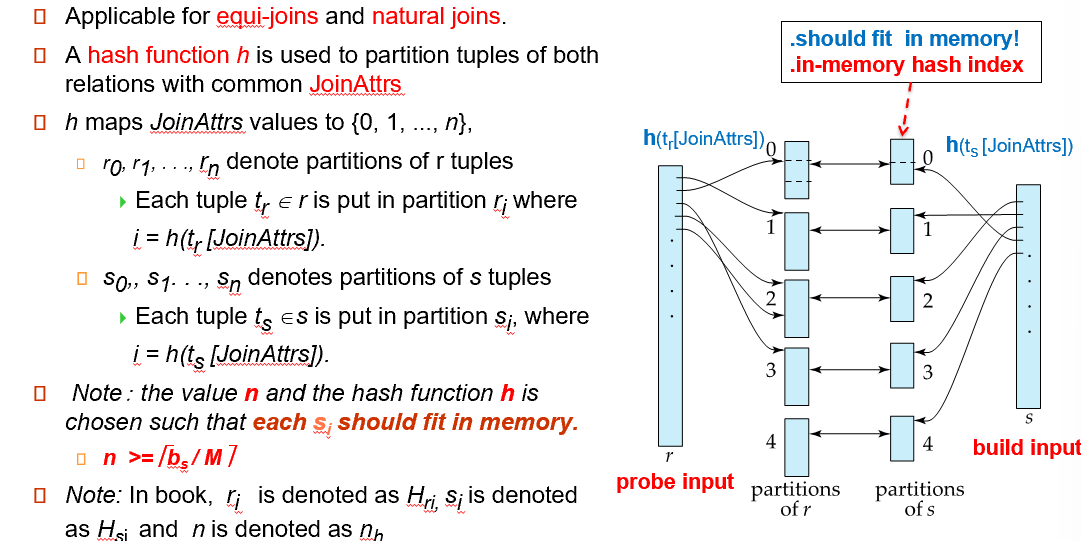

5.5 Hash-Join

Cost

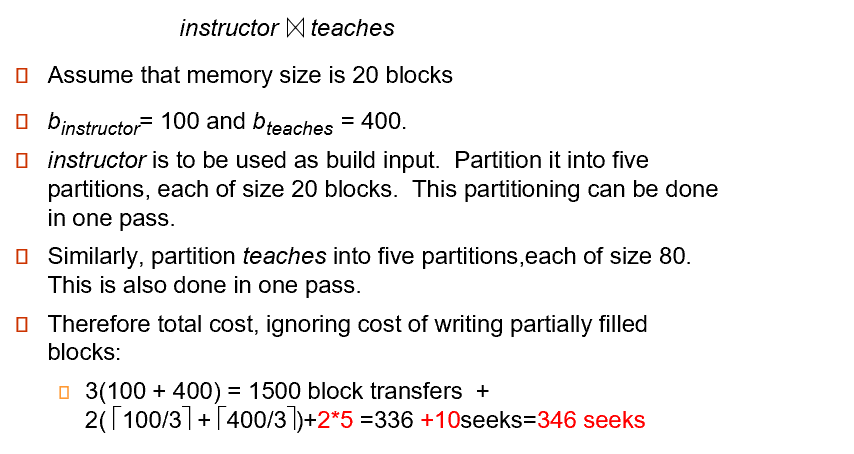

Example

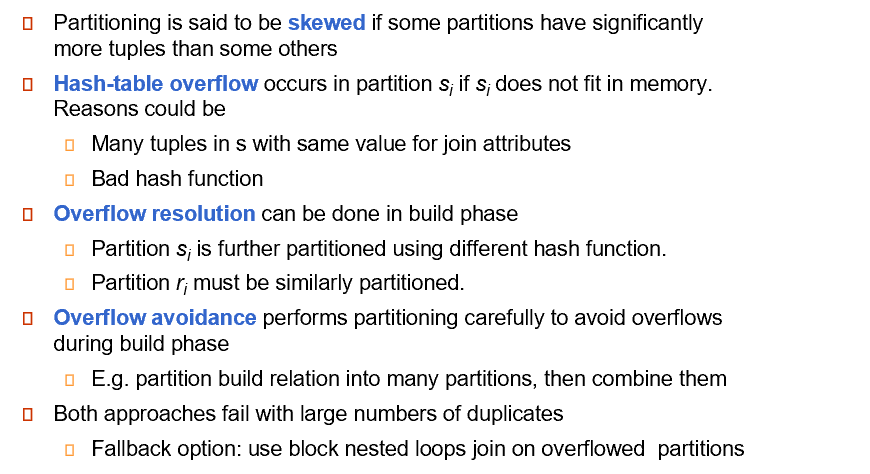

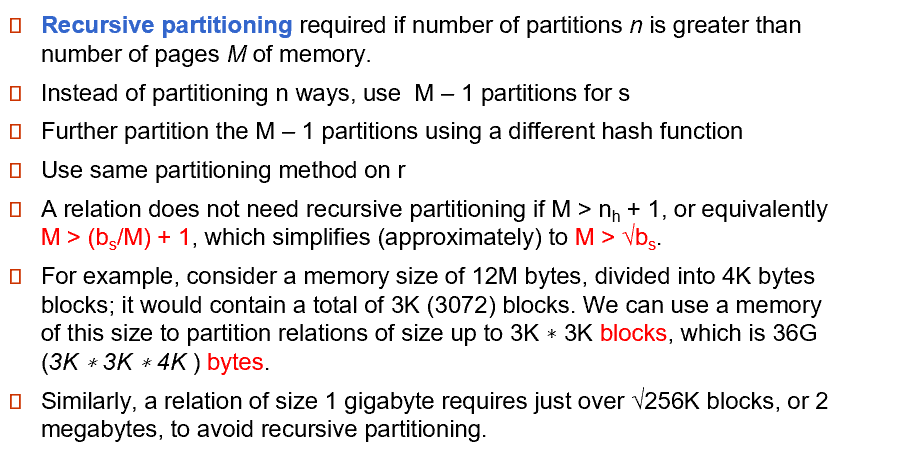

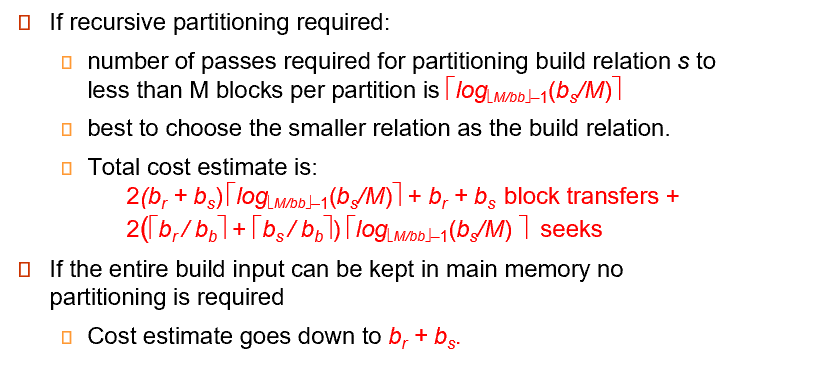

5.5.1 Recursive partitioning

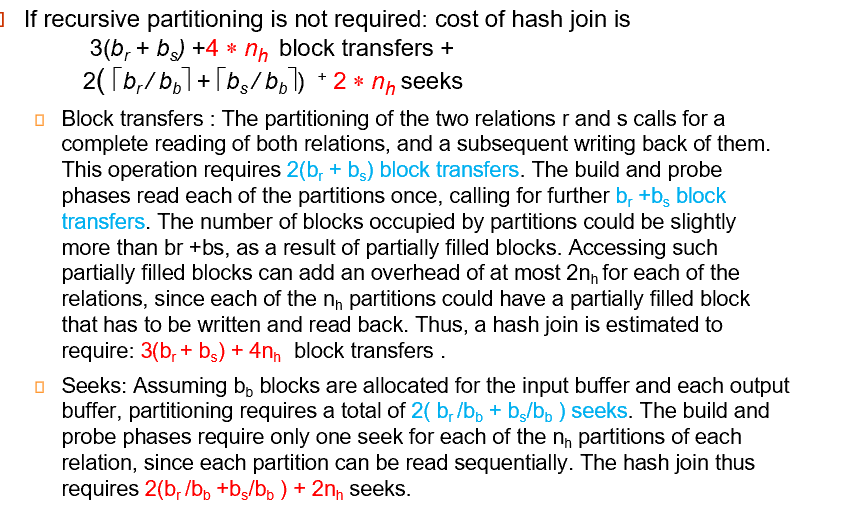

5.5.2 Cost Of Hash-Join
