chapter14: Index

1 Basic Concepts

Index mechanisms used to speed up access to desired data. 索引用来加速查找。

search Key: attribute to set of attributes used to look up records in a file. 属性为用于查找文件中记录的属性集。

An index file consists of records (called index entries) of the form. 索引文件通常是有顺序的

1.1 Index Evaluation Metrics

• Access types supported efficiently
  • Point query: records with a specified value in the attribute. 点查询
  • Range query: records with an attribute value falling in a specified range of values. 范围查询
• Access time
• Insertion time
• Deletion time
• Space overhead

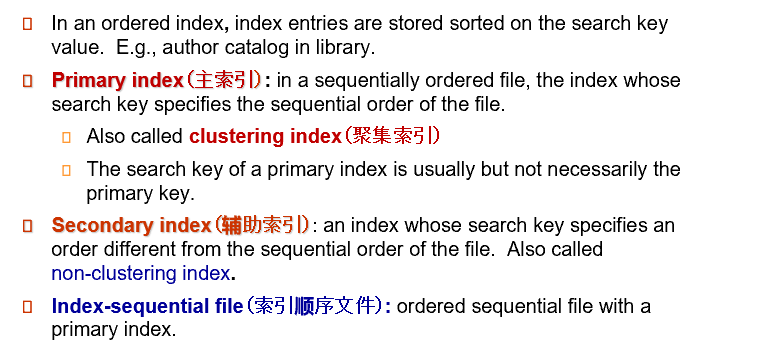

1.2 Ordered Indices

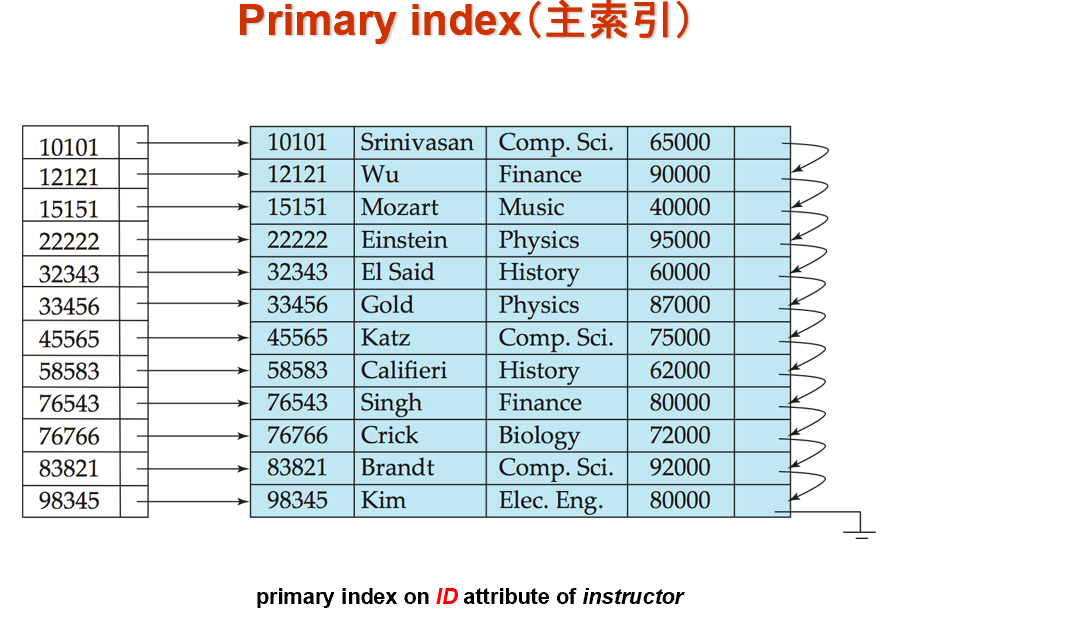

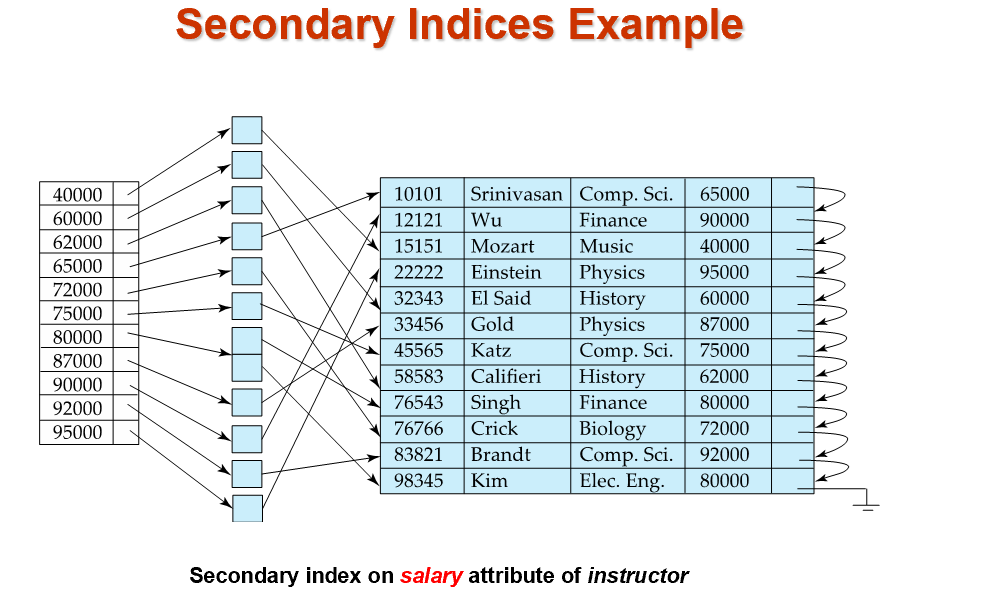

Primary index 是很宝贵的，只能有一个，其他都是辅助索引。

Example

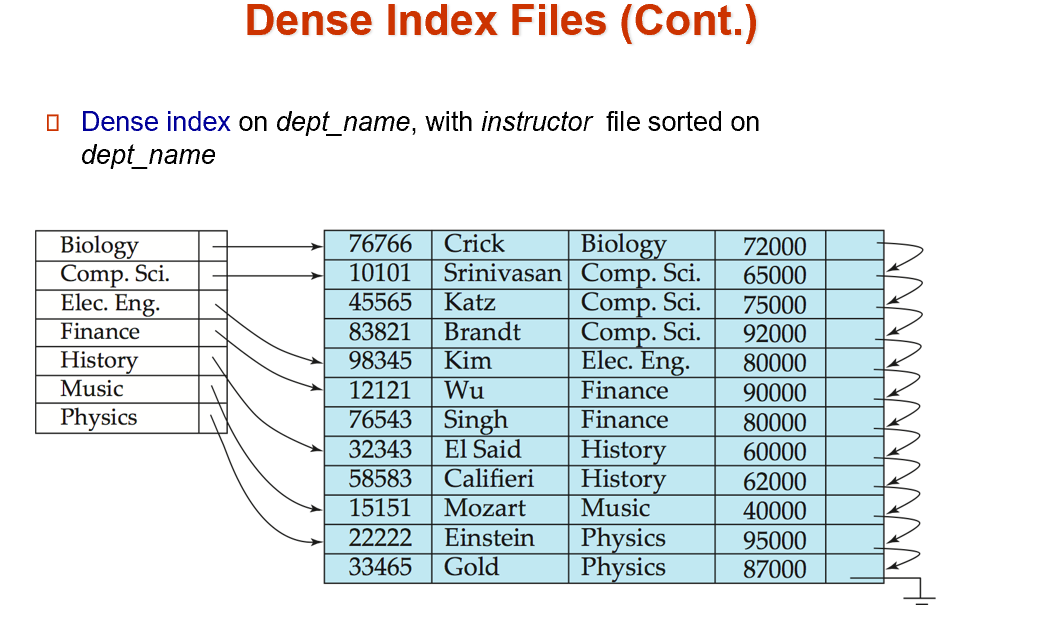

• Dense index(稠密索引) — Index record appears for every search-key value in the file. 所有 search-key 都要出现在索引文件里。

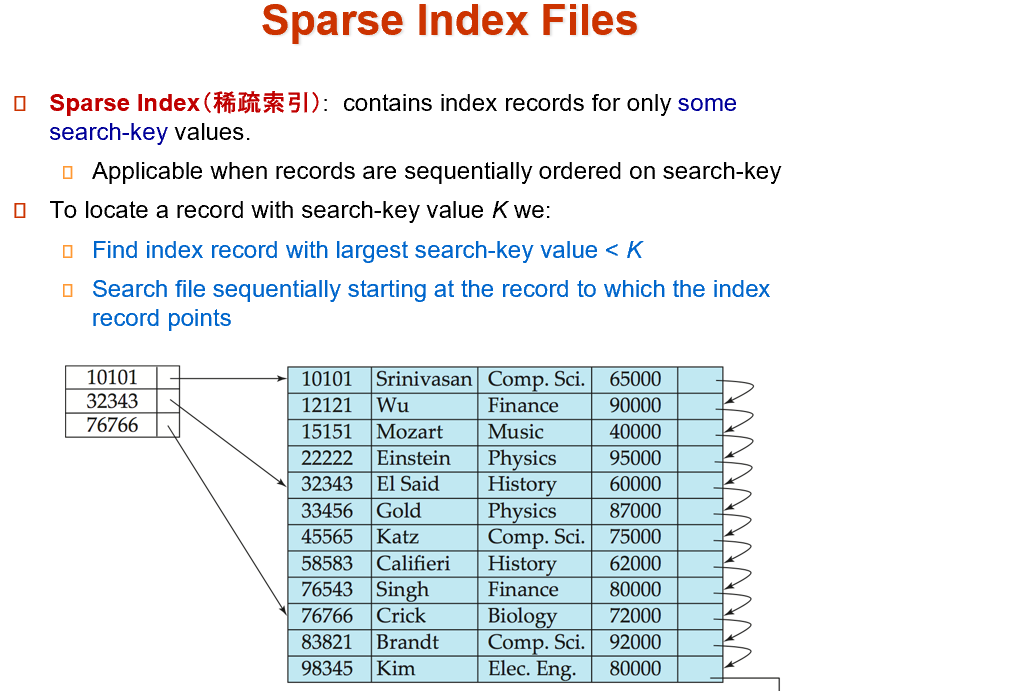

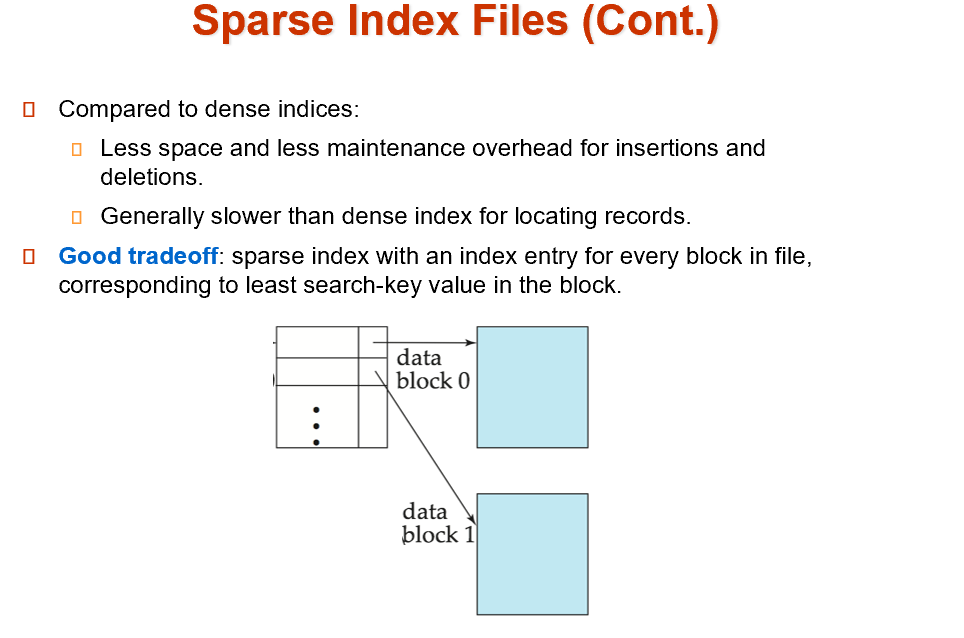

• Sparse Index(稀疏索引): contains index records for only some search-key values.

Example

Tip

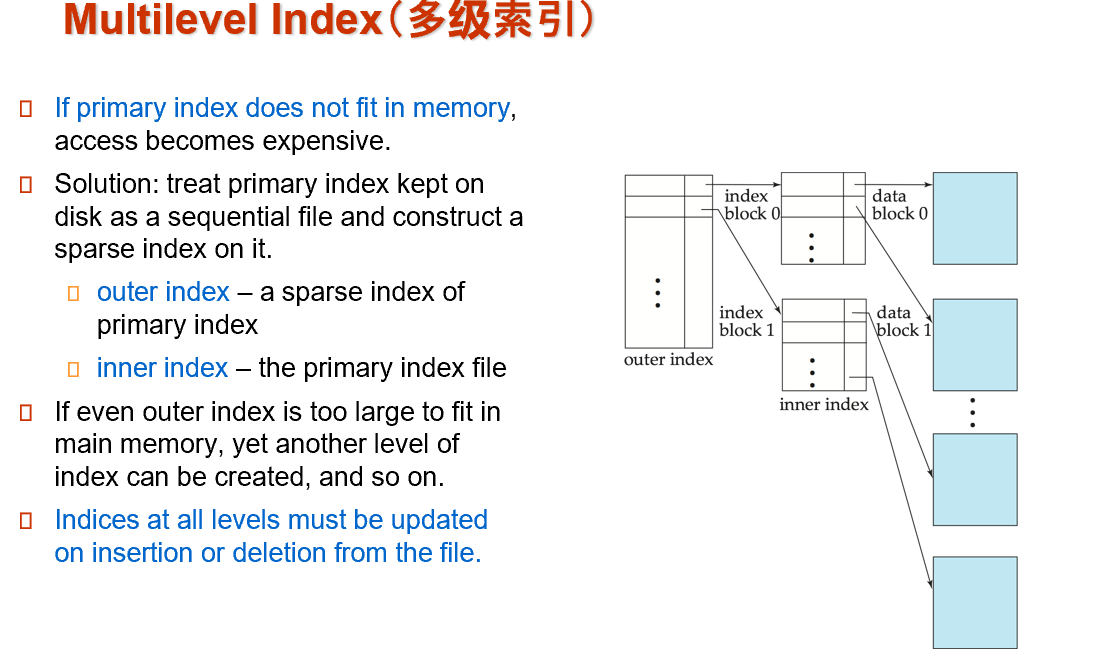

1.3 Multilevel Index(多级索引)

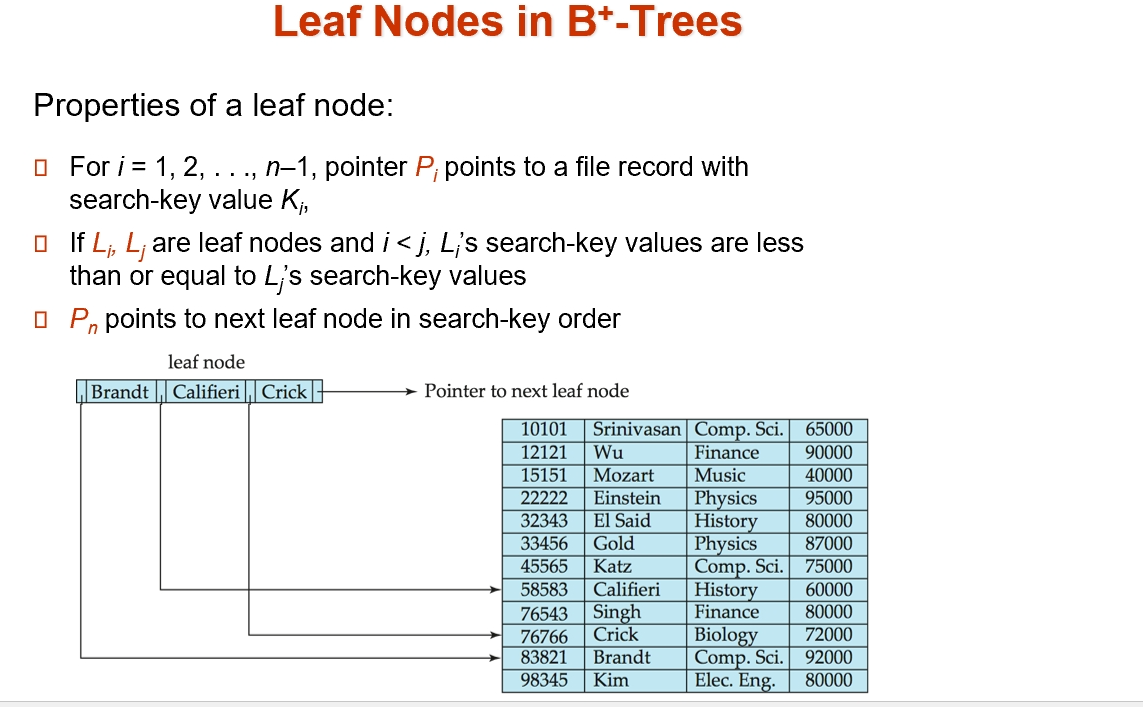

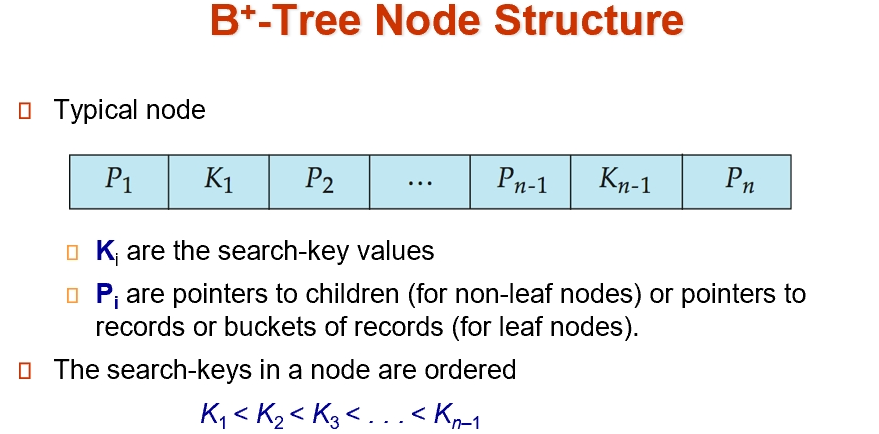

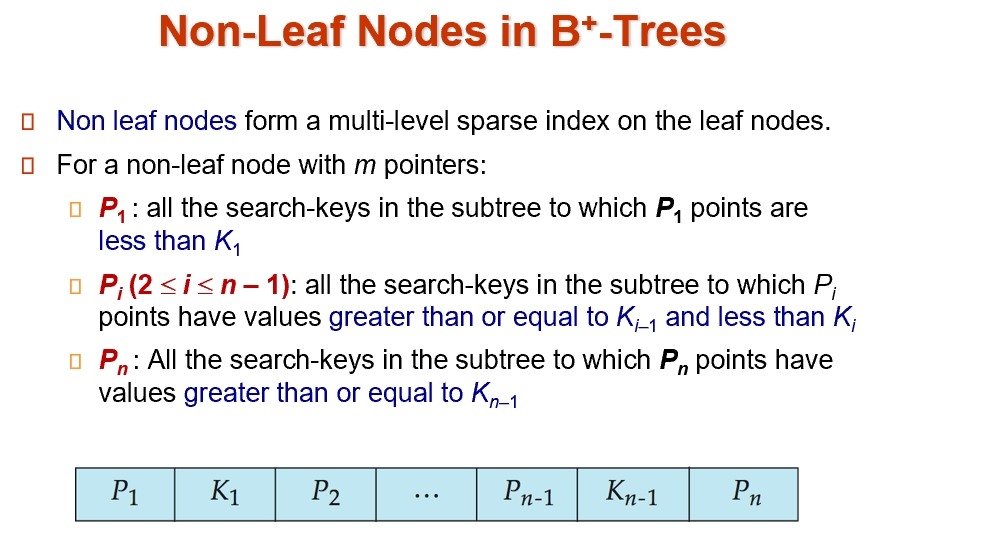

2 B+-Tree Index

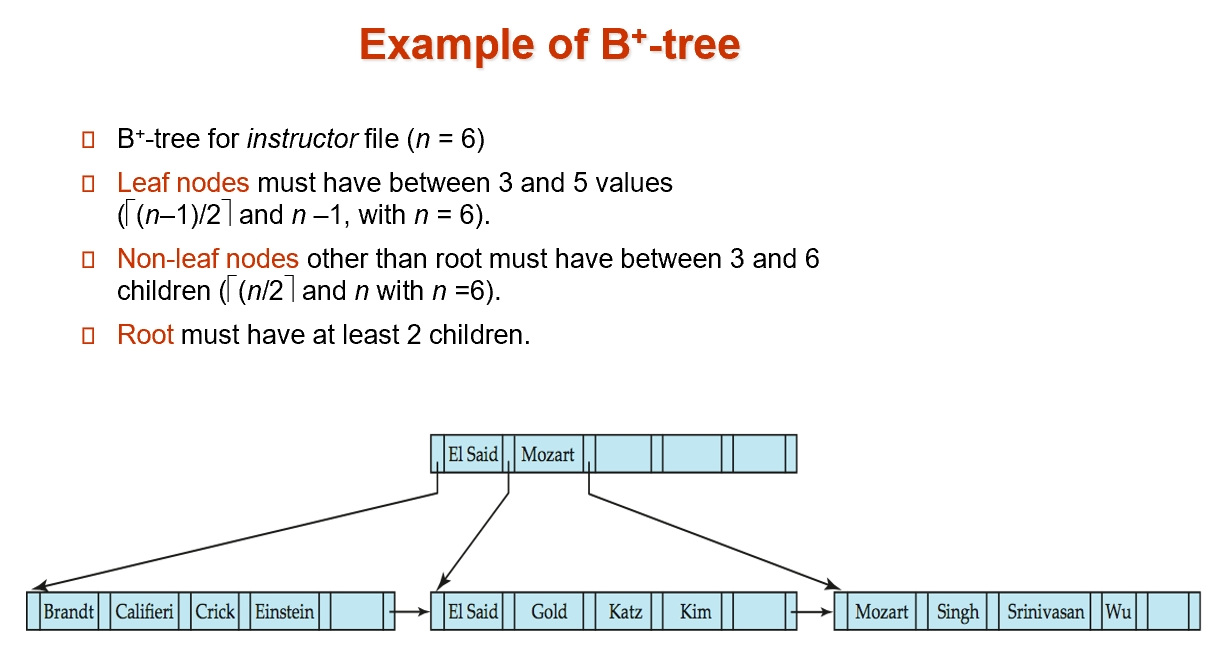

Example

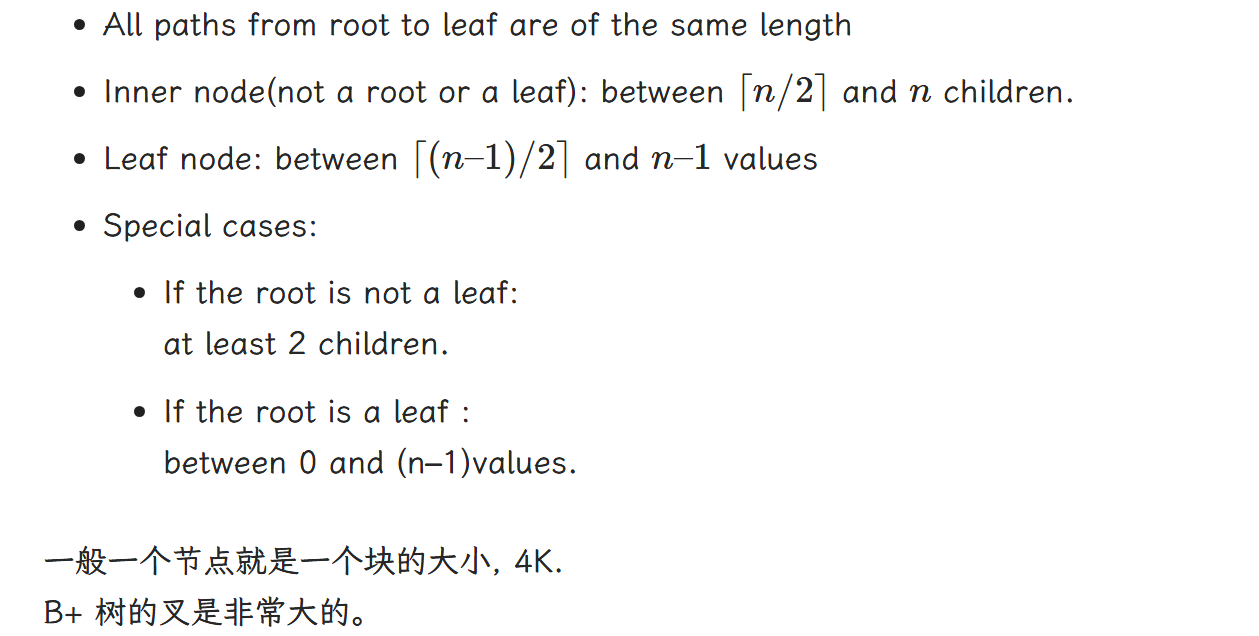

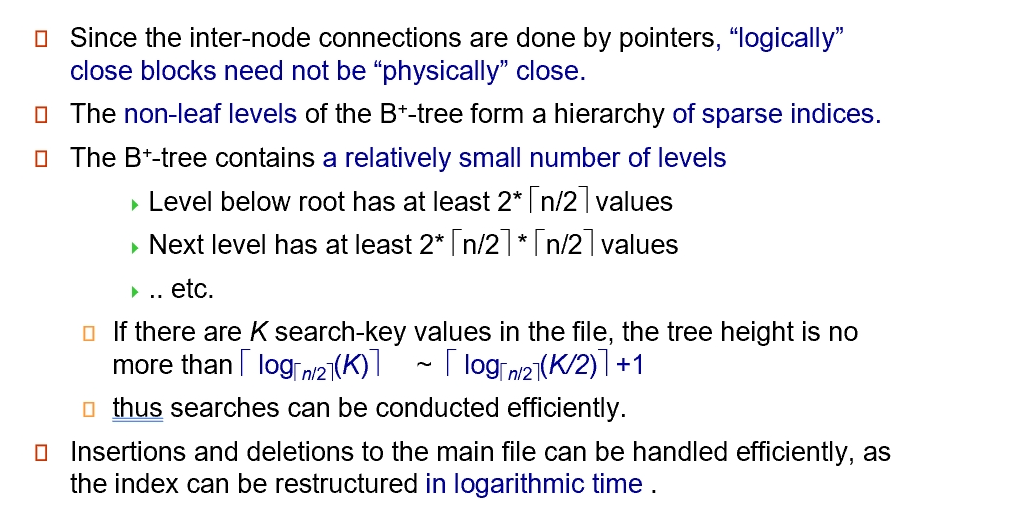

2.1 Observations about B+-trees

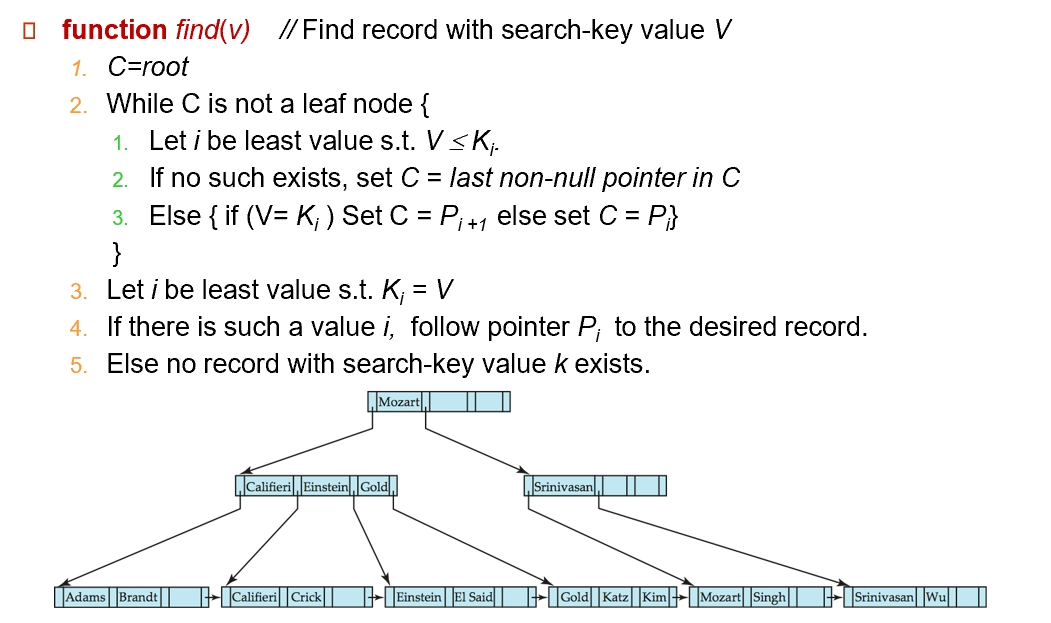

!!! note Query on B+-Tree

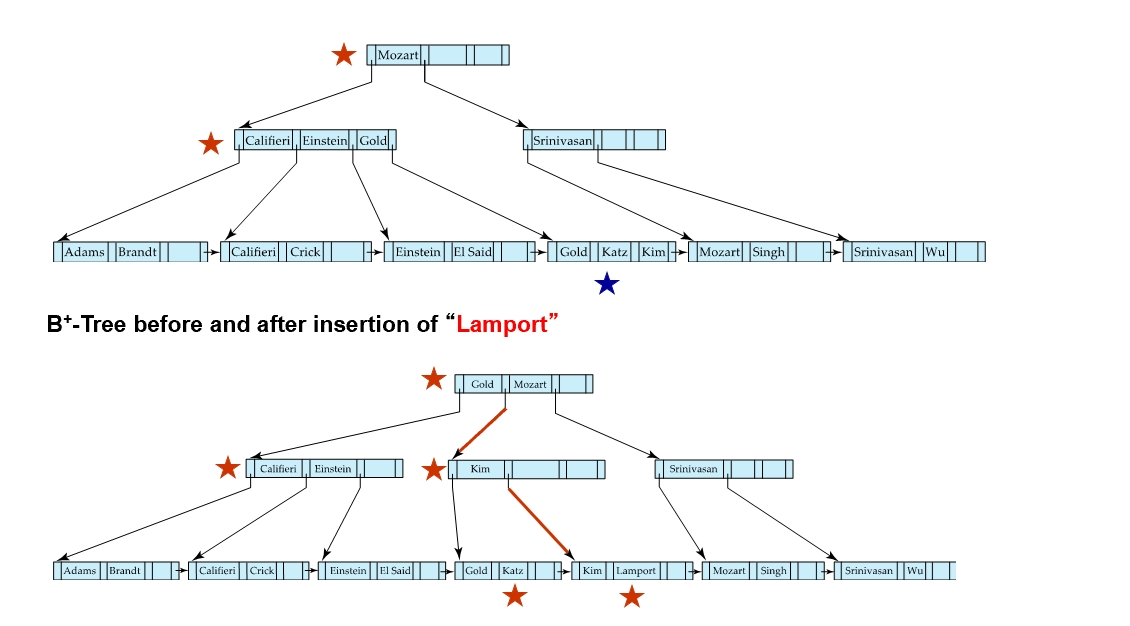

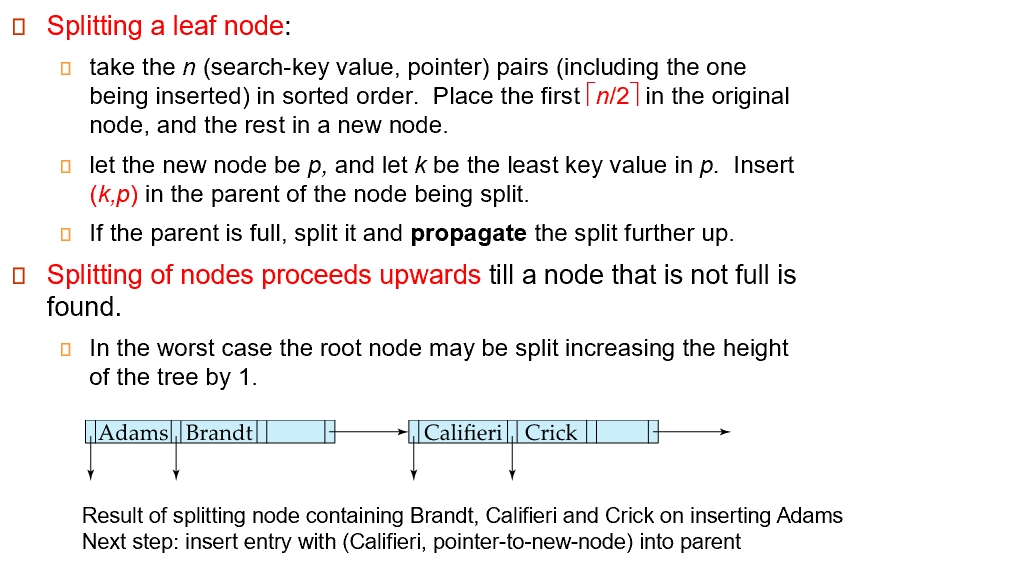

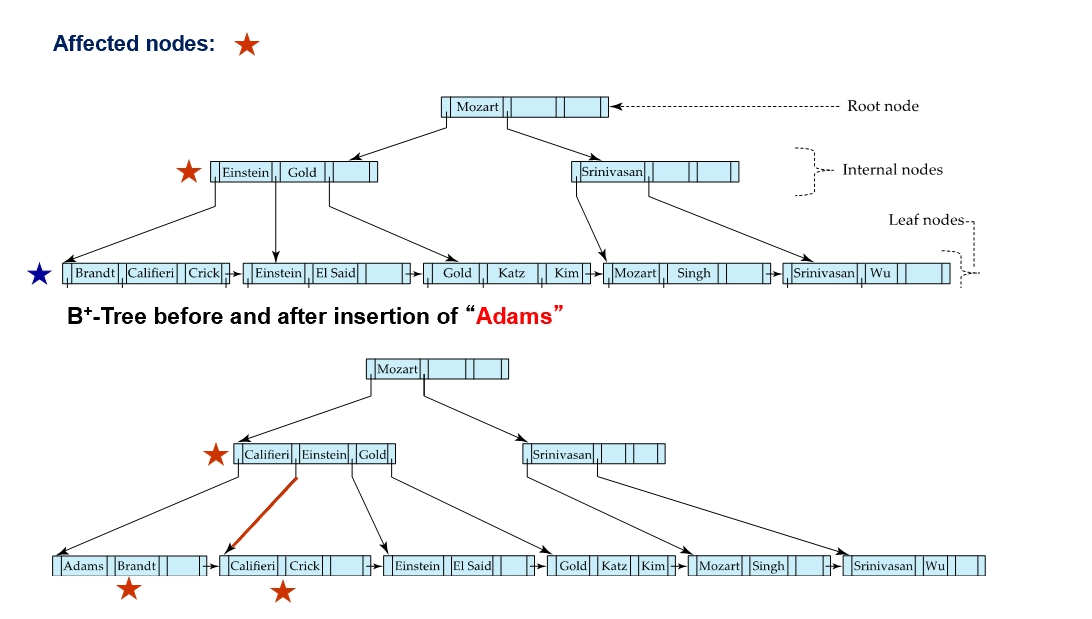

2.2 Insert of B+-Tree

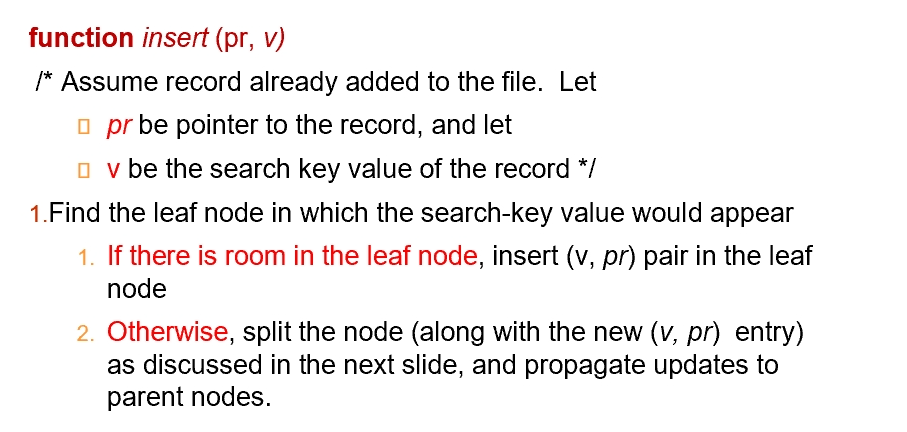

!!! note Insert on B+-Trees

Example

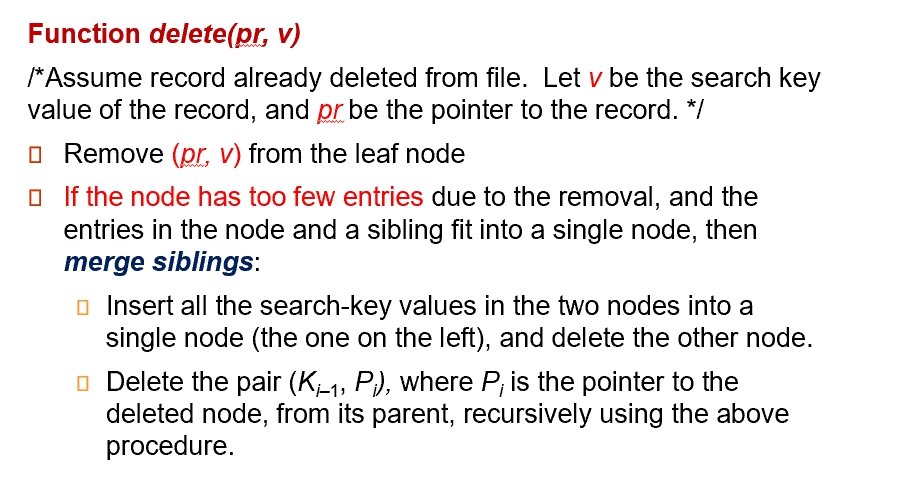

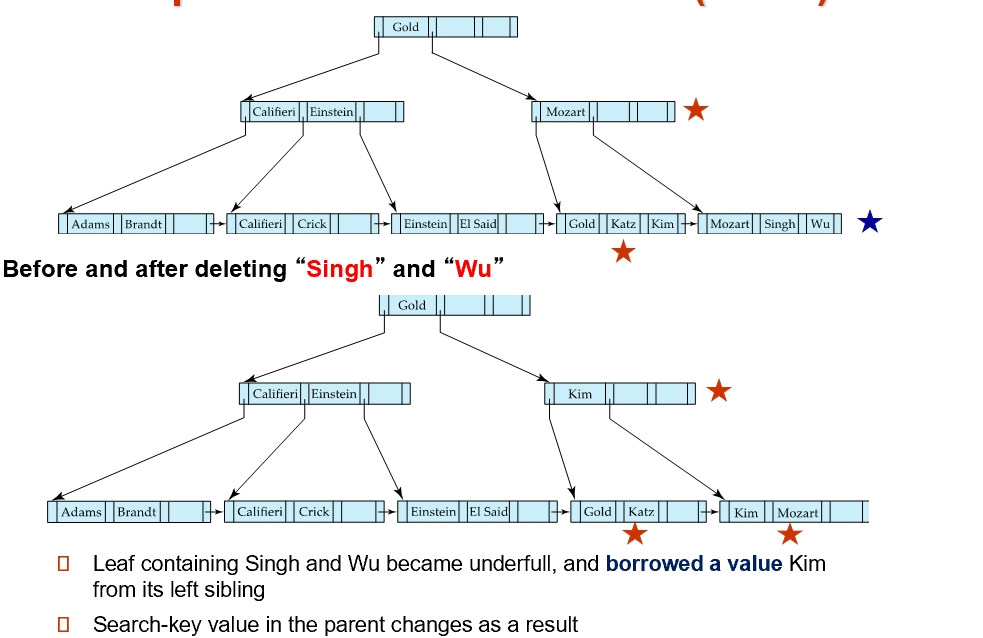

2.3 Delete of B+-Tree

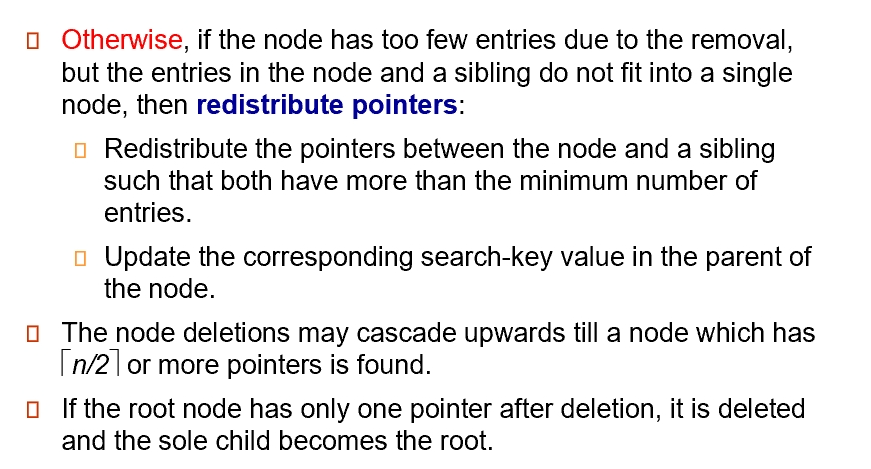

!!! note Delete on B+-Tree

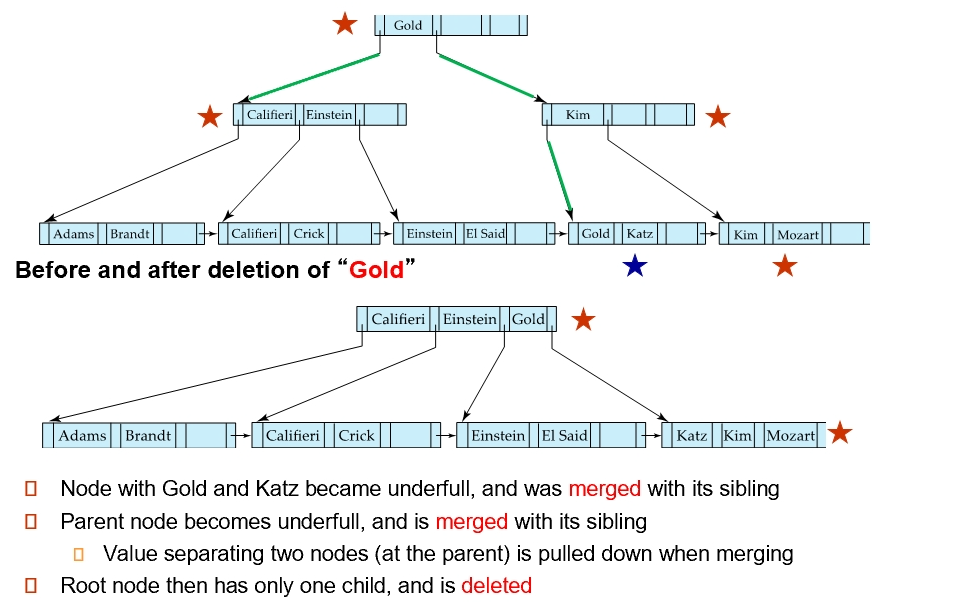

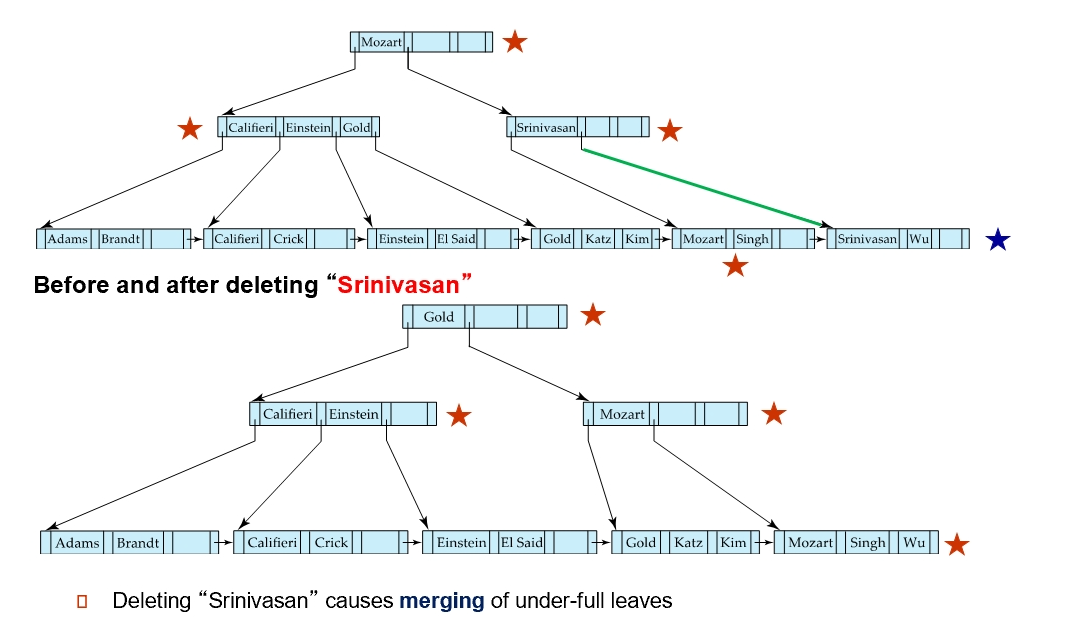

Example

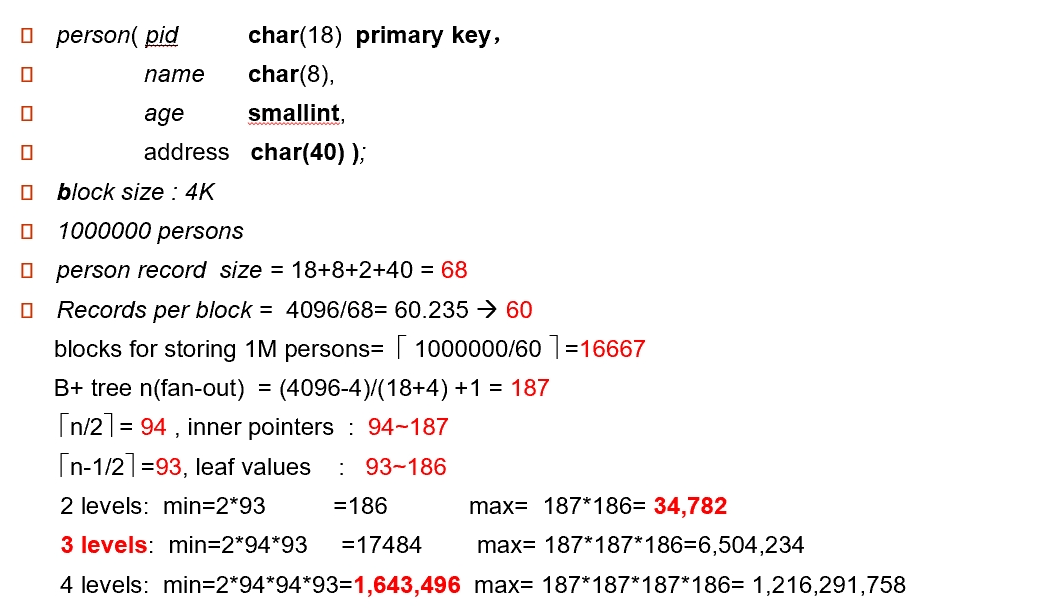

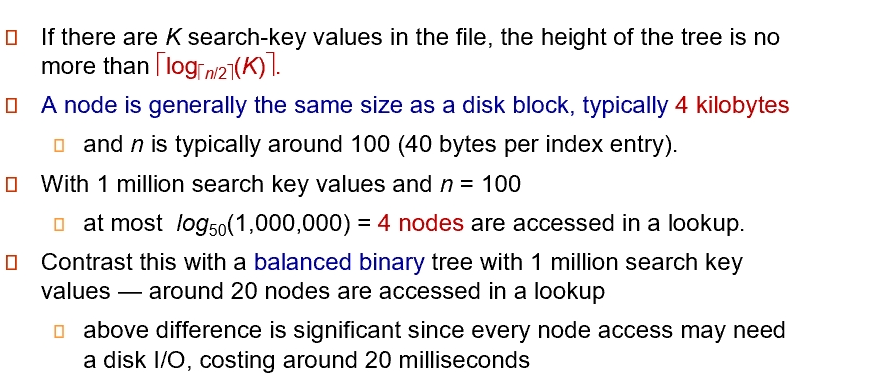

!!! warning B+-Tree: height and size estimation

2.4 other issues in indexing

• Record relocation and secondary indices
  • If a record moves, all secondary indices that store record pointers have to be updated如果一条记录移动，存储记录指针的所有二级索引都必须更新
  • Node splits in B+-tree file organizations become very expensive B+树文件组织中的节点拆分变得非常昂贵
  • Solution: use primary-index search key instead of record pointer in secondary index解决方案：在二级索引中使用主索引搜索键代替记录指针
• Variable length strings as keys
  • Variable fanout
• Prefix compression
  • Key values at internal nodes can be prefixes of full key内部节点的键值可以是全键的前缀
  • Keep enough characters to distinguish entries in the subtrees separated by the key value保留足够的字符来区分由键值分隔的子树中的条目

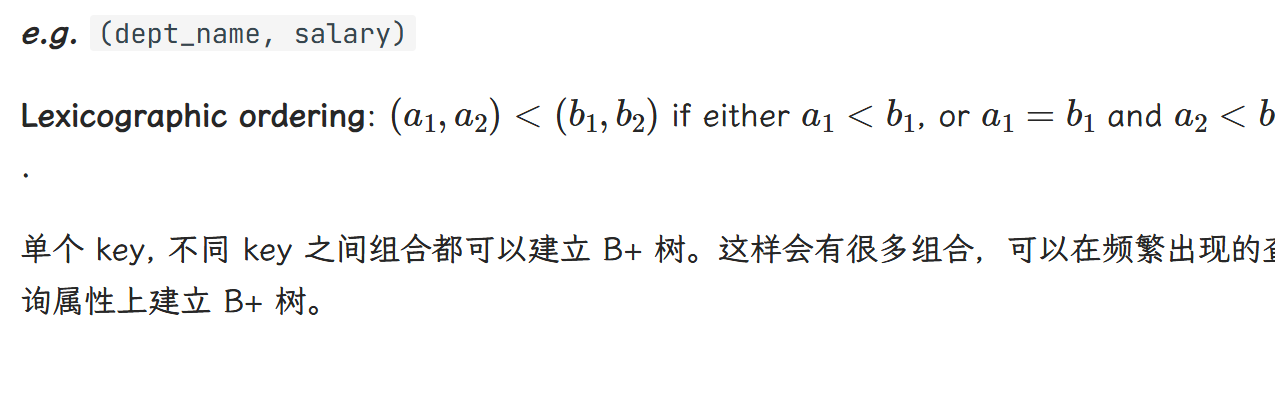

2.5 Multiple-Key Access

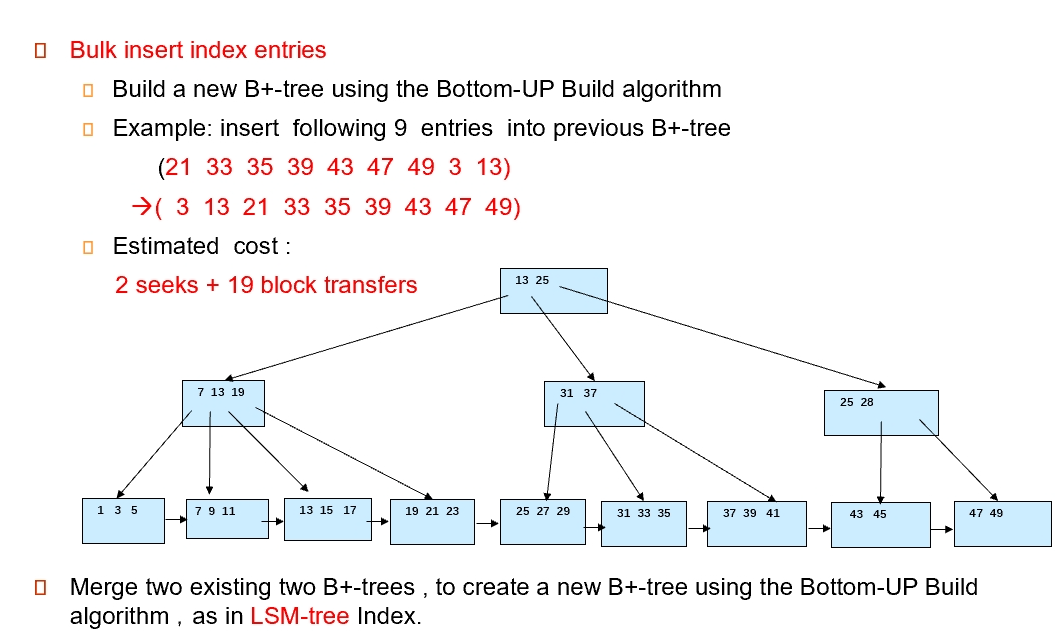

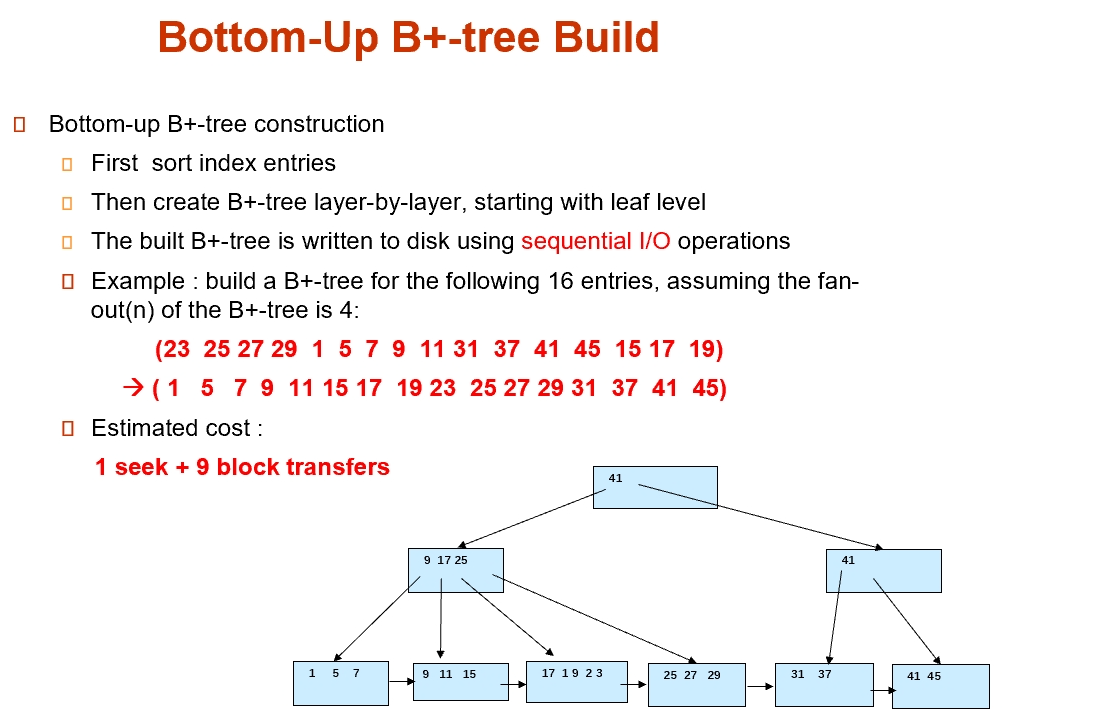

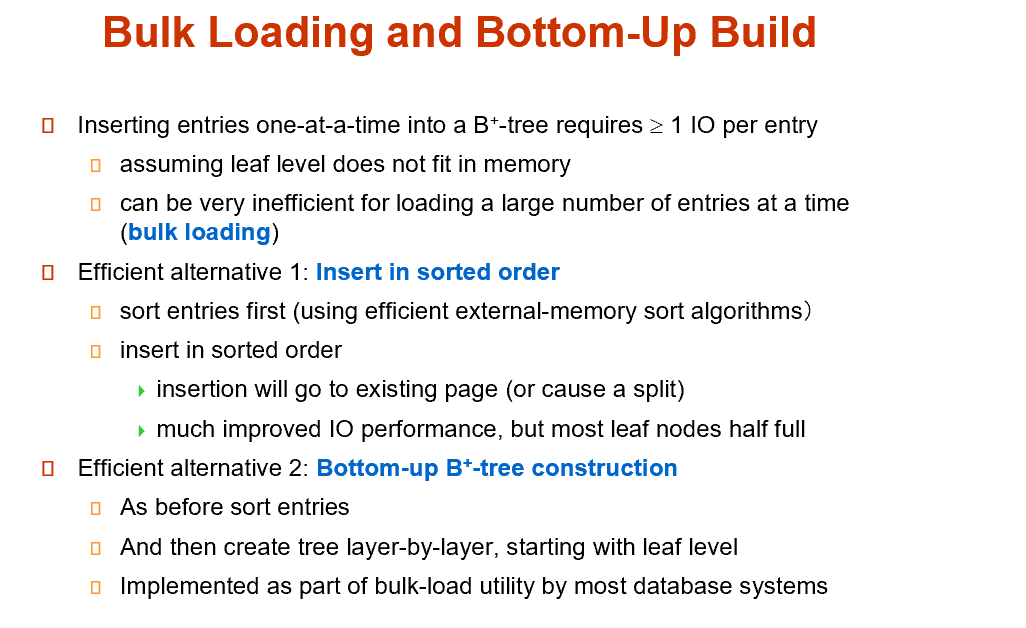

3 Bulk Loading and Bottom-up Build

Example

如果要排序的内容较大，无法放下内存，可以使用外部排序。 fanout 可以计算出来。 可以用 level-order 写到磁盘里，便于顺序访问所有索引，此时块是连续的。（便于顺序访问所有数据项） 这里的代价就是建好后，一次 seek 后全部写出去 (9 blocks)

Example2

把刚刚那棵 B+ 树叶子节点（即遍历所有数据）需要 1seek+6blocks. 随后和上面的数据合并后，写回磁盘时需要 1seek+13blocks.

Merge two existing two B+-trees , to create a new B+-tree using the Bottom-UP Build algorithm, as in LSM-tree Index 假设有两棵这样生成的 B+ 树，将他们合并在一起。首先把叶子节点拿出来排序。

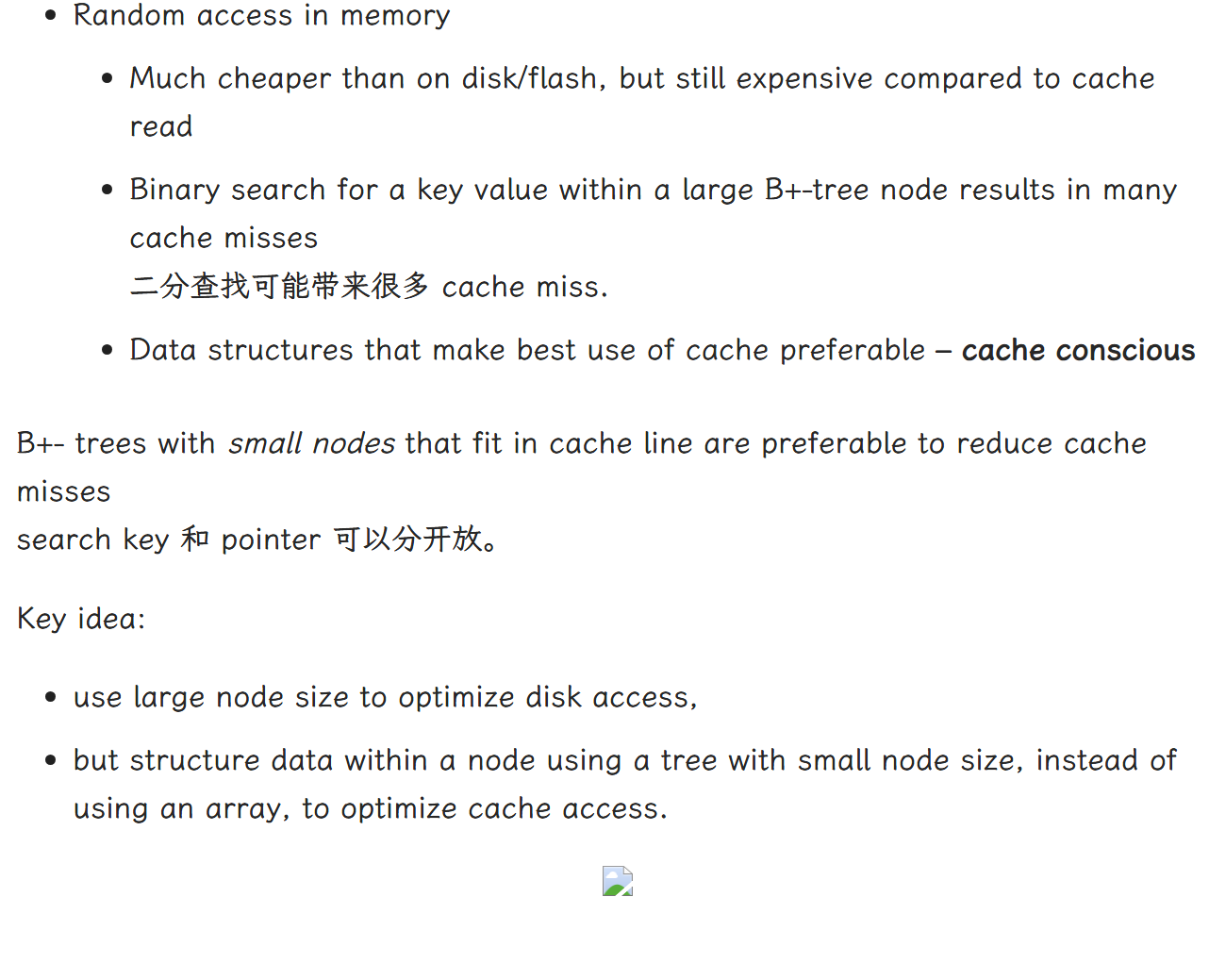

4 Indexing in Main Memory

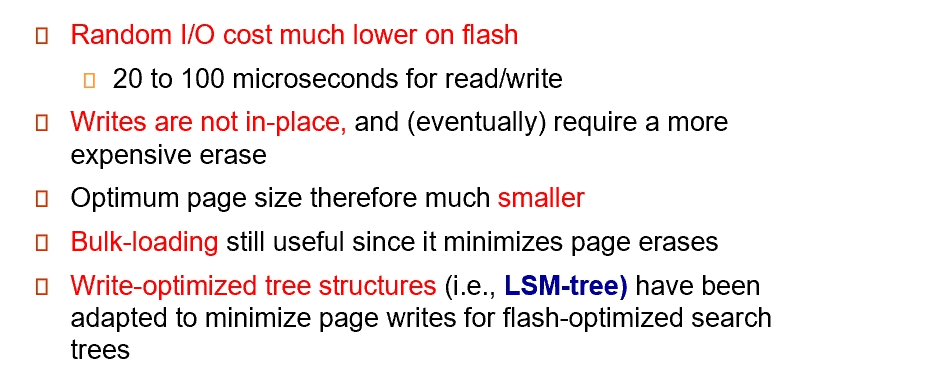

5 Indexing on flash

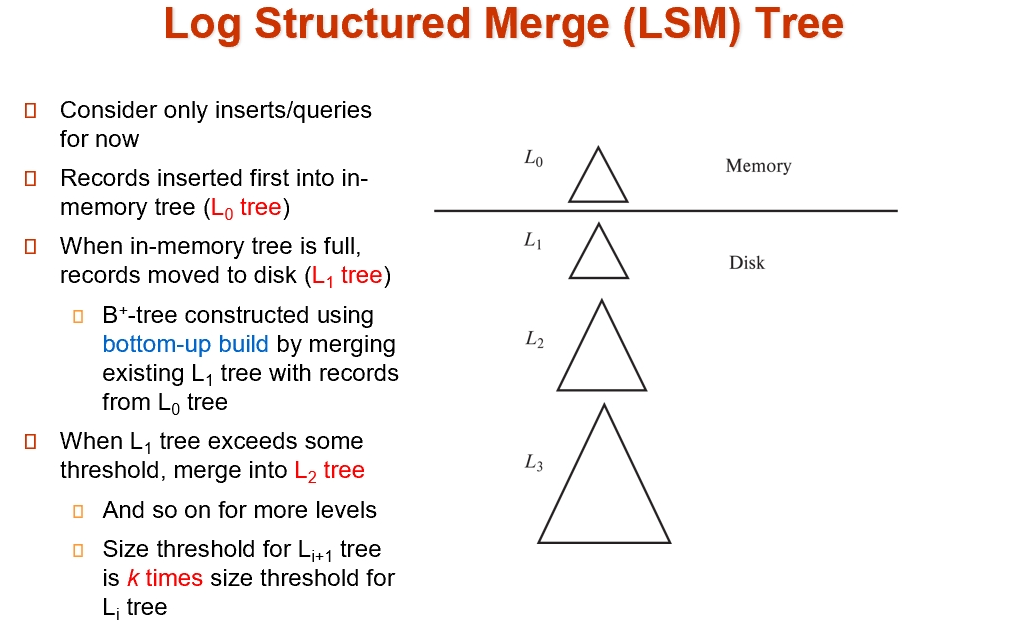

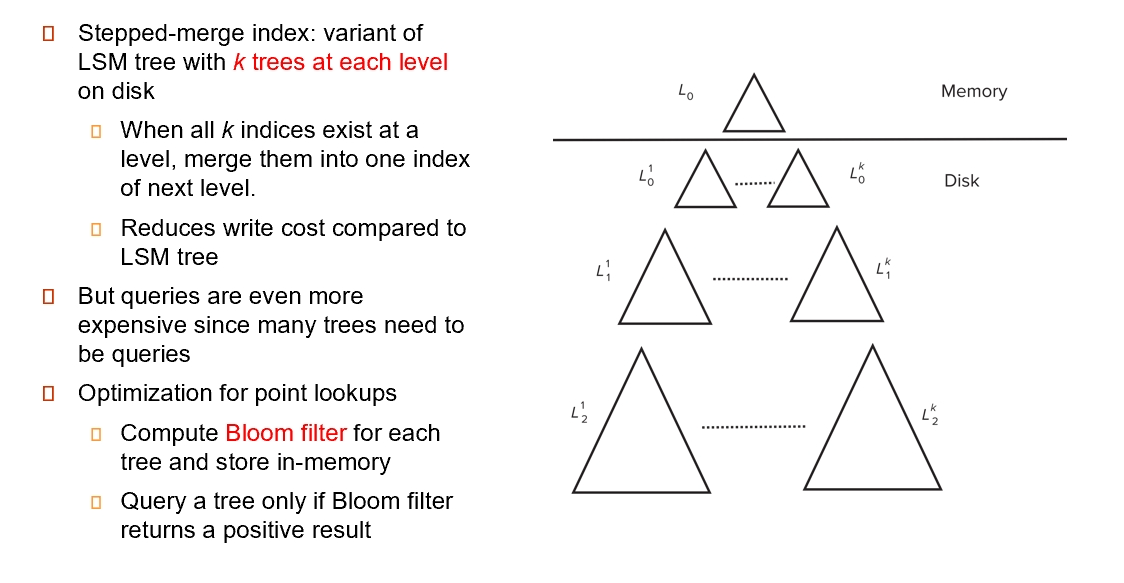

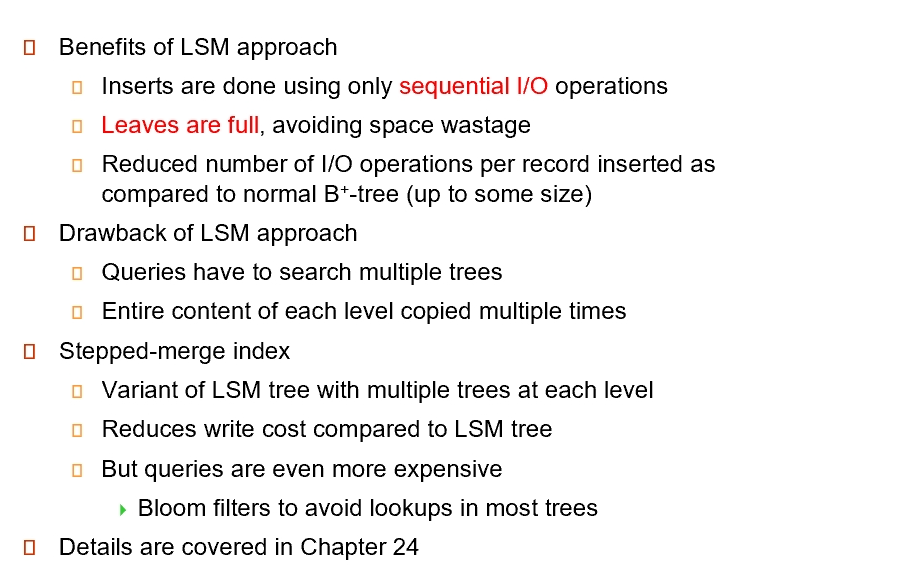

5.1 LogStructured Merge(LSM) Tree
